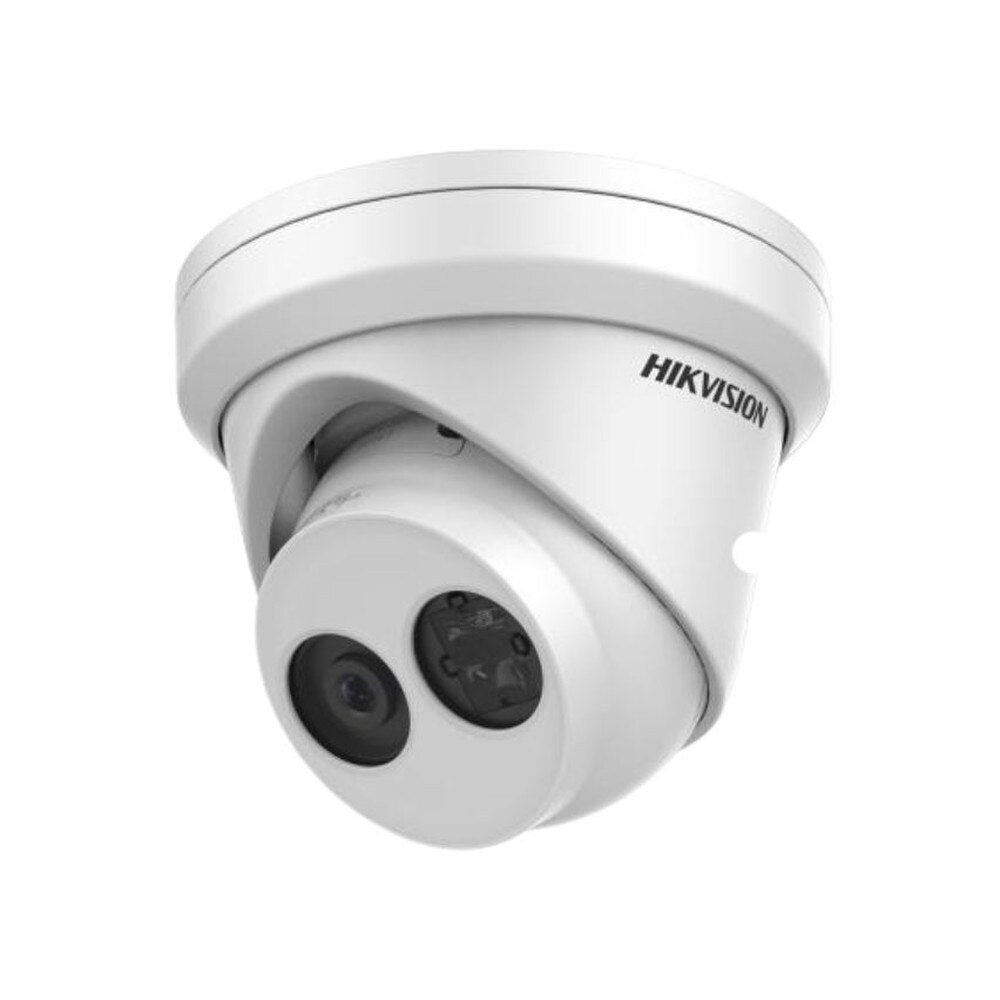

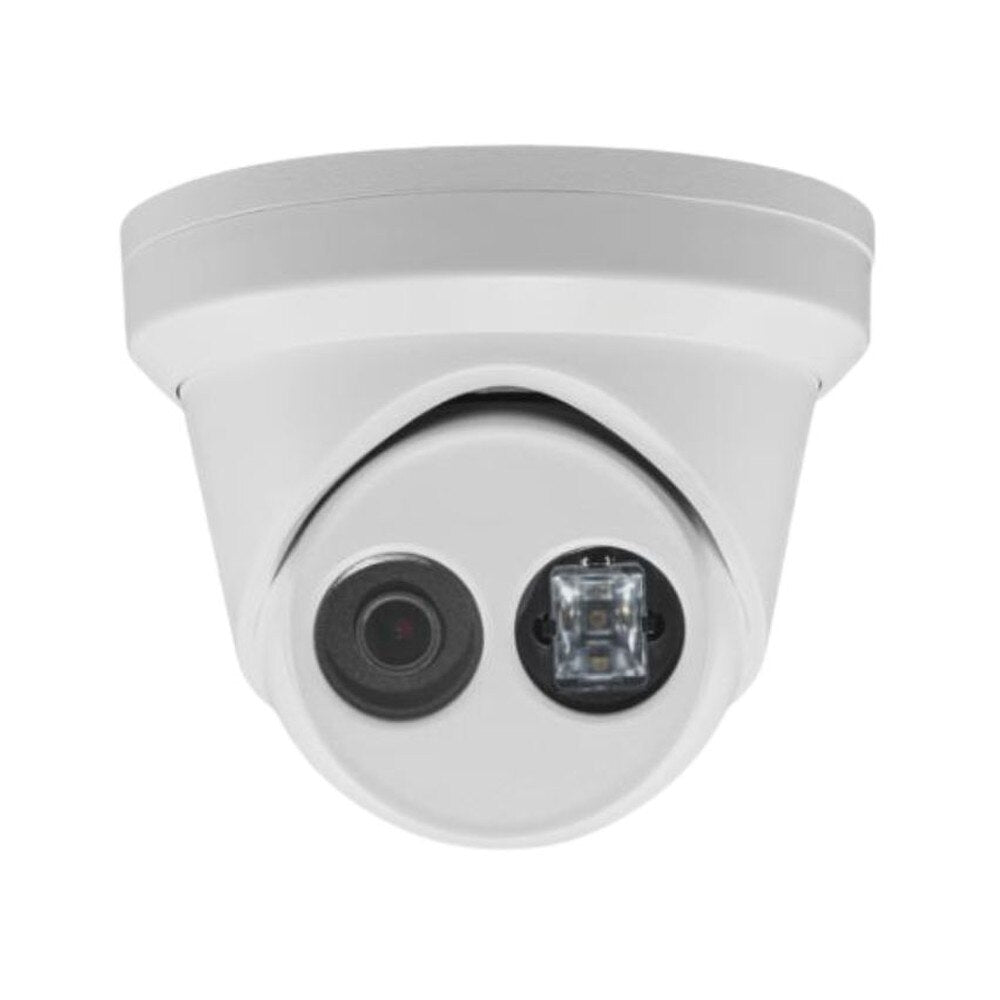

Hikvision DS-2CD2343G0-I 2.8mm 4MP Outdoor IR Fixed Turret IP Camera

Product Description

The Hikvision DS-2CD2343G0-I-2.8MM is a 4MP outdoor IR fixed turret IP camera designed for surveillance in various environments. Featuring a 2.8 mm fixed lens and a 1/3" progressive scan CMOS sensor, it records up to 2688 x 1520 video at 30 fps. It offers a 103° horizontal field of view and EXIR 2.0 IR illumination up to 30 m.

• Records 2688 x 1520 resolution video at 30 fps.
• Features a fixed 2.8 mm lens with a 103° horizontal field of view.
• Offers IR illumination up to 30 m with EXIR 2.0 technology.

Product Highlights

This Hikvision turret IP camera is ideal for monitoring driveways, entrances, and open spaces, providing reliable surveillance with its robust construction and advanced features.

Product Information

Standard Information

• Brand: HIKVISION
• Manufacturer Part Number: DS-2CD2343G0-I 2.8mm

Technical Specifications

• Manufacturer: Hikvision
• Manufacturer Part Number: DS-2CD2343G0-I-2.8MM
• Product Name: Hikvision DS-2CD2343G0-I-2.8MM 4MP Outdoor IR Fixed Turret IP Camera
• Product Type: Camera
• Image Sensor: 1/3" Progressive Scan CMOS
• Max. Resolution: 2688 × 1520 @ 30 fps
• Lens: Fixed 2.8 mm, f/1.6, M12 mount
• Field of View: 103° H × 58° V × 123° D
• Min. Illumination: Color: 0.018 Lux @ (f/1.6, AGC ON); 0 Lux with IR
• Shutter Speed: 1/3 s to 1/100,000 s; slow shutter: Yes
• IR Range: Up to 30 m (100 ft); EXIR 2.0, 850 nm wavelength
• WDR: 120 dB True WDR
• Day/Night: IR Cut Filter
• Video Compression: H.265+/H.265/H.264+/H.264/MJPEG; three streams
• Main Stream: 50 Hz: 25 fps (2688×1520, 2560×1440, 2304×1296, 1920×1080, 1280×720); 60 Hz: 30 fps
• Sub Stream: 50 Hz: 25 fps (640×480, 640×360, 320×240); 60 Hz: 30 fps
• Third Stream: 50 Hz: 25 fps (1280×720, 640×360, 352×288); 60 Hz: 30 fps (1280×720, 640×360, 352×240)
• Bit Rate Control: CBR/VBR/HBR; 32 Kbps–16 Mbps
• Region of Interest: 1 fixed region (main/sub stream)
• Image Enhancement: BLC, HLC, 3D DNR, rotate mode, saturation/brightness/contrast/sharpness/AGC/white balance adjustable
• Smart Events: Line crossing, intrusion, face detection (basic)
• Basic Events: Motion detection, video tampering, exception alarms (network disconnect, IP conflict, illegal login, HDD full/error)
• Audio (-U model): Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3; Bit rate: 8–320 Kbps; Sampling: 8–48 kHz; Environment noise filtering
• Network Storage: microSD/SDHC/SDXC (up to 128 GB); NAS (NFS, SMB/CIFS); ANR
• Network Protocols: IPv4/IPv6, 802.1x, HTTP, TCP, UDP, SMTP, NTP, DHCP, DNS, DDNS, QoS, HTTPS, SSL, FTP, SNMP
• Interface: 1 RJ45 10M/100M self-adaptive Ethernet
• Angle Adjustment: Pan: 0°–360°; Tilt: 0°–75°; Rotate: 0°–360°
• Power Supply: 12 VDC ±25% (max. 6 W); PoE (802.3af, Class 3, max. 7.5 W)
• Material: Metal body
• Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F); Humidity: ≤95% (non-condensing)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F); Humidity: ≤95% (non-condensing)
• Protection: IP67 (water/dust resistant); TVS 4000V surge protection
• General Functions: Anti-flicker, heartbeat, mirror, privacy masks (8 areas), password reset via email, pixel counter
