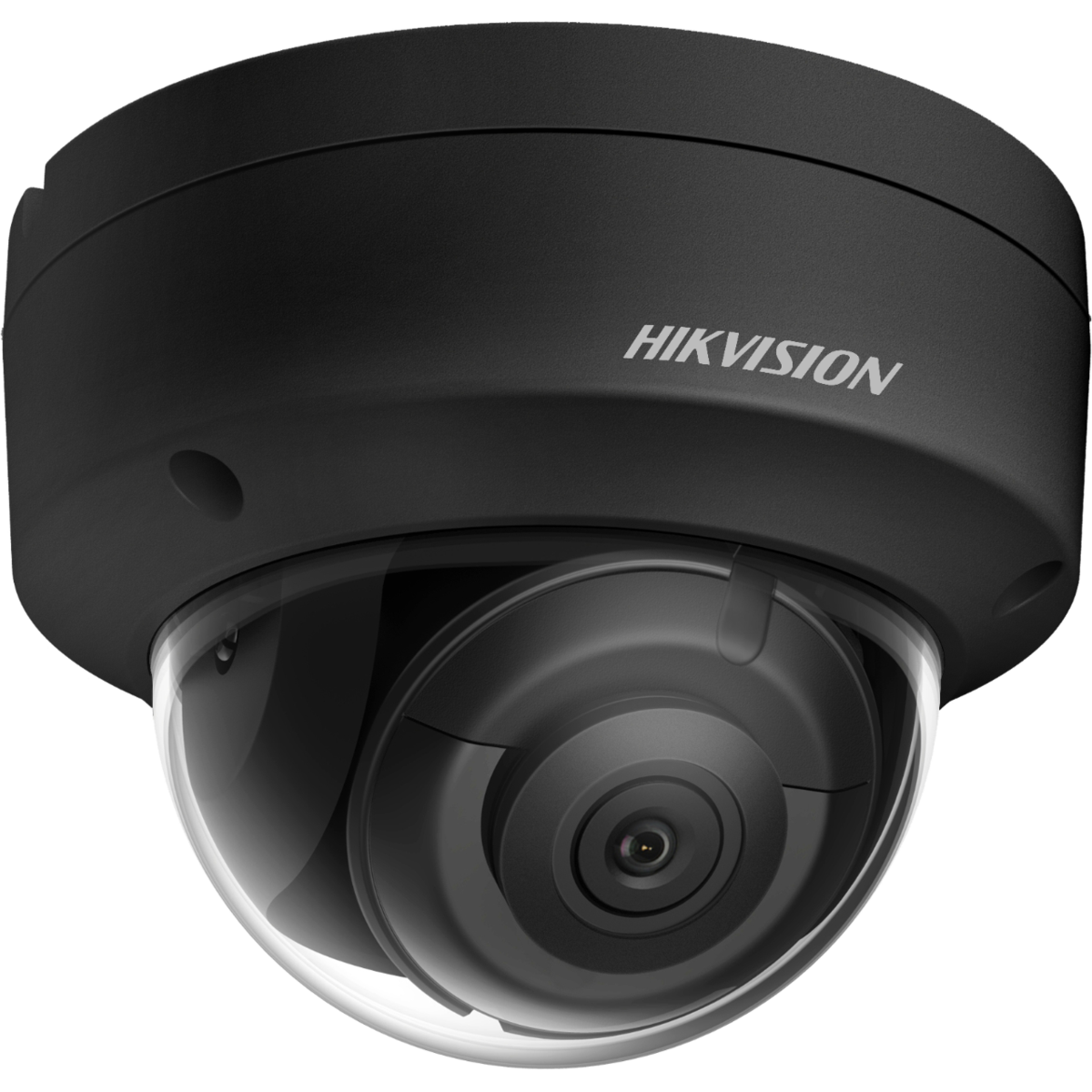

Hikvision DS-2CD2183G2-IU 2.8mm Black 8MP AcuSense Vandal Fixed Dome Network Camera

Product Description

The Hikvision DS-2CD2183G2-IU 2.8mm BLACK is an 8MP AcuSense vandal fixed dome network camera, delivering high-quality imaging with 8 MP resolution. It provides clear imaging against strong backlight due to 120 dB true WDR technology and utilizes efficient H.265+ compression technology. The camera focuses on human and vehicle targets classification based on deep learning.

• High quality imaging with 8 MP resolution
• Clear imaging against strong backlight due to 120 dB true WDR technology
• Efficient H.265+ compression technology

Product Highlights

This Hikvision camera features a built-in microphone, is water and dust resistant (IP67), and vandal-resistant (IK10), suitable for various security applications.

Product Information

Standard Information

• Brand: HIKVISION
• Manufacturer Part Number: DS-2CD2183G2-IU 2.8MM BLACK

Technical Specifications

• Resolution: 8MP
• Image Device: 1/2.8" Progressive Scan CMOS
• Lens Size: 2.8mm
• Lens Type: Fixed Lens
• Angle of View: Horizontal FOV: 107°, vertical FOV: 57°, diagonal FOV: 128°
• Minimum Scene Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• IR Distance: 30m/98.42ft
• IR Wavelength: 850 nm
• Electronic Shutter: 1/3 s to 1/100,000 s
• Wide Dynamic Range: Yes
• Digital Noise Reduction: Yes
• Compression Method: H.264, M-JPEG, H.264+, H.265, H.265+
• Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
• Operating Humidity: 95% or less (non-condensing)
• Power Consumption: 12 VDC, 0.5 A, max. 6 W, PoE (802.3af, 36 V to 57 V), 0.25 A to 0.15 A, max. 7.5 W
• Weatherproof: IP67
• Vandal Resistant: Yes
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
• S/N Ratio: ≥ 52 dB
• Voltage: 12vDC, PoE
• Connection Type: Wired
• Mount Type: Ceiling, Wall
• Audio: Yes
• Motion Detection Tracking: Yes
• Privacy Masking: Yes
• Mirror: Yes
• Auto Gain Control: Yes
• Day/Night: Yes
• Automatic White Balance: Yes
• Back Light Compensation: Yes
• Infrared Distance: 61~100 Feet
• Durability: Vandal Resistant, Weather Resistant
• Aperture: F1.6
• Camera Style: Dome
• Max Power Consumption: 7.5 Watts
• Minimum Illumination (B/W): 0 Lux with IR
• Minimum Illumination (Color): 0.005 Lux @ F1.6
• Night Vision Range (ft): 98
• Power Supply: 12 VDC, PoE (IEEE 802.3af)
• Protection Code: IP67 IK10
• SD Card Support: True
• Sensor Size: 1/2.8"
• Sensor Type: CMOS
• Storage Temperature: -30°C to 60°C (-22°F to 140°F)
• Storage Humidity: 5% to 95% RH (non-condensing)
• Wide Dynamic Range (WDR): True WDR 120dB
• Built-In Microphone: Yes
• Power I/O: 1x DC (12VDC) Input 1x RJ45 Input
• Lens Mount: M12
• Number of Lenses: 1
