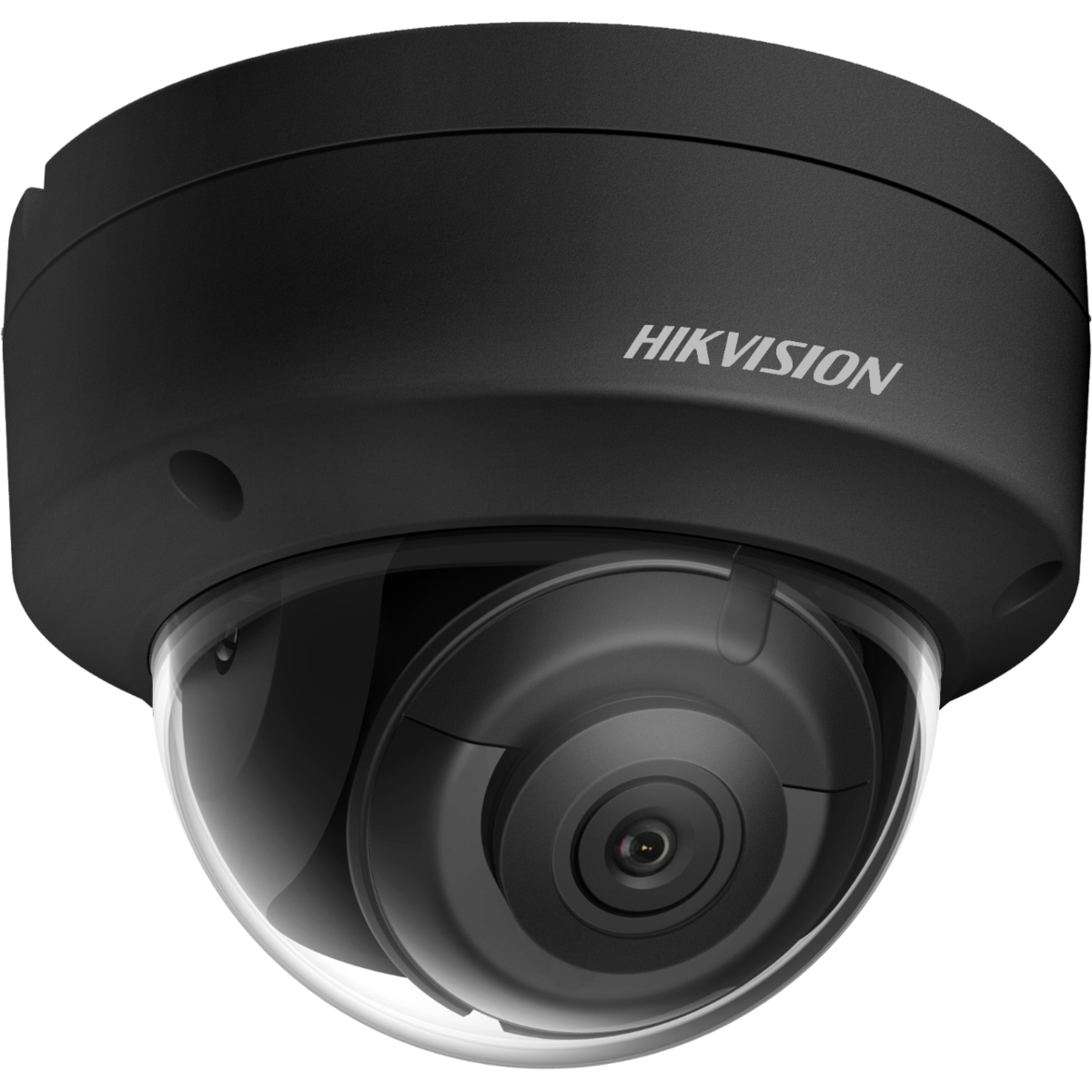

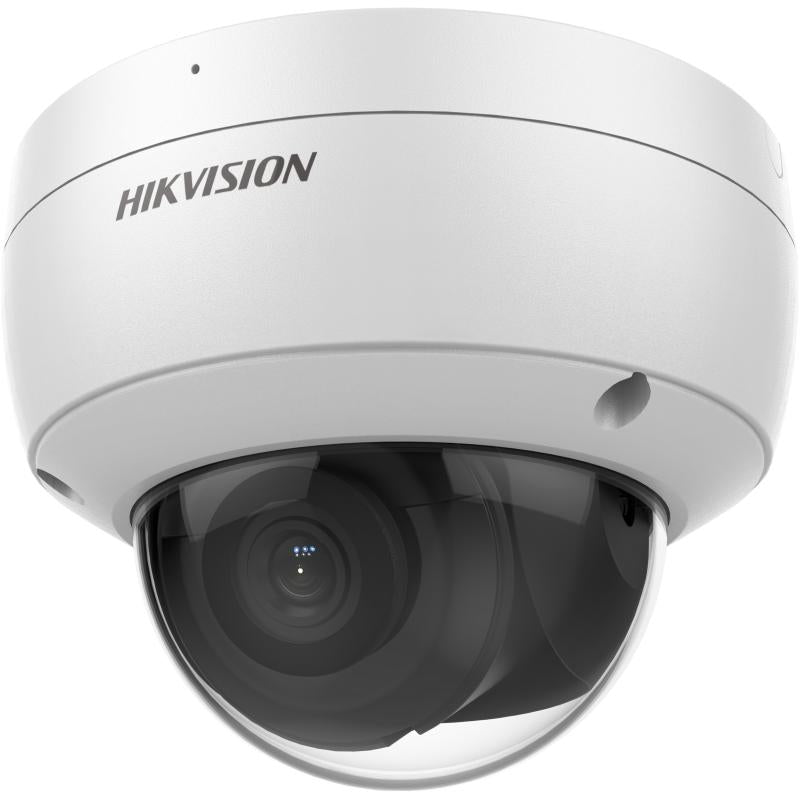

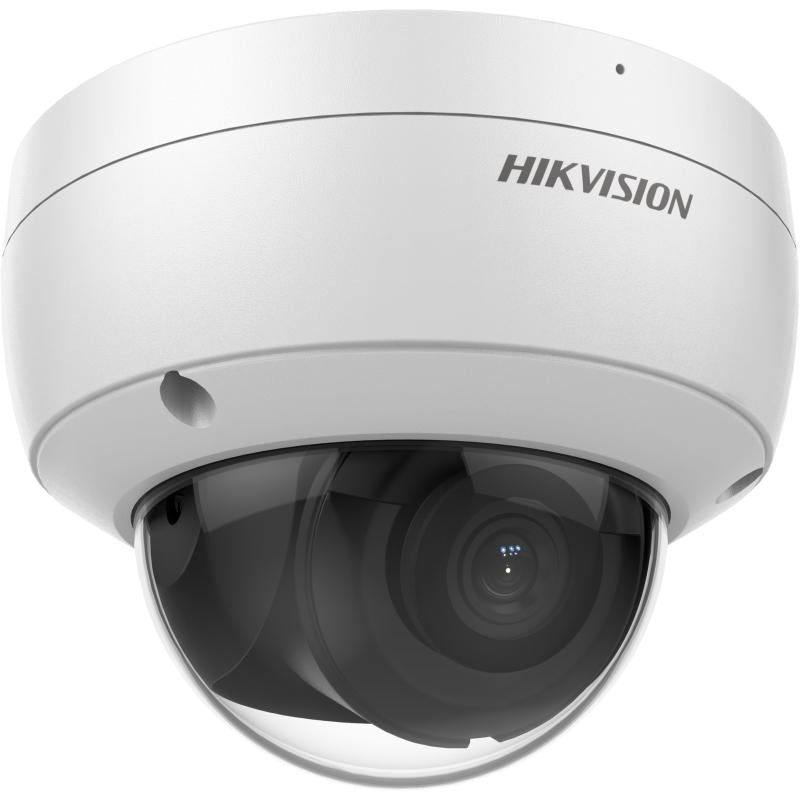

Hikvision DS-2CD2183G2-IU 2.8mm AcuSense vandal fixed dome network camera 8 MP

Product Description

The HIKVISION DS-2CD2183G2-IU 2.8mm is an AcuSense vandal fixed dome network camera offering high-quality 8 MP resolution. It provides clear imaging against strong backlight due to 120 dB true WDR technology and utilizes efficient H.265+ compression technology. The camera focuses on human and vehicle targets classification based on deep learning.

• High quality imaging with 8 MP resolution
• Clear imaging against strong backlight due to 120 dB true WDR technology
• Efficient H.265+ compression technology

Product Highlights

This network camera has a built-in microphone, is water and dust resistant (IP67), and vandal-resistant (IK10).

Product Information

Standard Information

• Brand: HIKVISION
• Manufacturer Part Number: DS-2CD2183G2-IU 2.8mm

Technical Specifications

• Image Sensor: 1/2.8" Progressive Scan CMOS
• Max. Resolution: 3840 × 2160
• Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
• Lens Type: Fixed Lens
• Focal Length & FOV: 2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128° 4 mm, horizontal FOV 87°, vertical FOV 46°, diagonal FOV 105°
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.6
• DORI 2.8 mm: D: 88 m, O: 35 m, R: 17 m, I: 9 m
• DORI 4 mm: D: 108 m, O: 43 m, R: 22 m, I: 11 m
• Supplement Light Type: IR
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm
• Main Stream: 50 Hz: 20 fps (3840 × 2160) 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 20 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360), *Third stream is supported under certain settings.
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile,Main Profile,High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR,VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Video Compression: Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264 (*Third stream is supported under certain settings.)
• Region of Interest (ROI): 1 fixed region(s) for main stream and sub-stream
• Audio Type: Mono sound
• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/8-320 Kbps (MP3)/16-64 Kbps (AAC-LC)
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering: Yes
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile G), ISAPI, SDK, ISUP
• User/Host: Up to 32 users 3 user levels: administrator, operator, and user
• Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
• Client: iVMS-4200,Hik-Connect,Hik-Central
• Web Browser: Chrome, Internet Explorer, Firefox
• Image Parameters Switch: Yes
• Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night Switch: Day,Night,Auto,Schedule
• Wide Dynamic Range (WDR): 120 dB
• SNR: ≥ 52 dB
• Image Enhancement: BLC,HLC,3D DNR
• Privacy Mask: 4 programmable polygon privacy masks
• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-in Microphone: Yes
• Reset Key: Yes
• Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• Smart Event: Face detection
• Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture
• Perimeter Protection: Line crossing, intrusion Support alarm triggering by specified target types (human and vehicle)
• Power: 12 VDC ± 25%, 0.5 A, max. 6 W, PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.15 A, max. 7.5 W
• Dimension: Ø121.4 mm × 92.2 mm (Ø4.8" × 3.6")
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function: Heartbeat,anti-flicker,password reset via email,pixel counter
• EMC: FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
• Environment: CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
• Protection: IP67: IEC 60529-2013;IK10: IEC 62262:2002
• Safety: UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
• Compatible Devices: nvr
• Power Source: Ac/dc
• Connectivity Protocol: ONVIF
• Controller Type: Iris
• Mounting Type: Ceiling Mount
• Video Capture Resolution: 8MP
• Number of Items: 1
• Number of Channels: 8
• Wireless Communication Technology: RTSP
• Form Factor: Dome
• Night Vision Range: 100 Feet
• Wattage: 6 watts
• Batteries Required?: No
• Focus Type: Auto Focus
• Field Of View: 102 Degrees
• Low light technology: Infrared
• Alert Type: Motion Only
• Room Type: Classroom, Kitchen, Living Room, Office
• Video Capture Format: MPEG H, MPEG-4
• Unit Count: 1.0 Count
• Photo Sensor Technology: CMOS
• Effective Still Resolution: 8 MP
• International Protection Rating: IP67
• Maximum Webcam Image Resolution: 8 MP
• Control Method: Remote
• NDAA Compliance: No
• IR Distance: 30m/98.42ft
• Minimum Scene Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Lens Size: 2.8mm
• Camera Signal: Network IP
• Angle of View: Horizontal FOV: 107°, vertical FOV: 57°, diagonal FOV: 128°
• Digital Noise Reduction: Yes
• Weatherproof: IP67
• Infrared Distance: 61~100 Feet
• Resolution: 8 Megapixel (4k)
• Voltage: 12vDC, PoE
• Compression Method: H.264, M-JPEG, H.264+, H.265, H.265+
• Connection Type: Wired
• Image Device: 1/2.8" Progressive Scan CMOS
• Electronic Shutter: 1/3 s to 1/100,000 s
• Dimensions (W x H): Ø 121.4 mm × 92.2 mm (Ø 4.8" × 3.7")
• Durability: Weatherproof, Vandal Proof
• Mount Type: Ceiling, Wall
• Audio: Yes
• Motion Detection Tracking: Yes
• Privacy Masking: Yes
• Wide Dynamic Range: Yes
• Mirror: Yes
• Auto Gain Control: Yes
• Day/Night: Yes
• Automatic White Balance: Yes
• Back Light Compensation: Yes
• Audio Capability: One-way Audio
• Audio Support: Built-in Microphone
• Camera Style: Dome
• Certifications: FCC, CE, RCM, IC, KC, RoHS, WEEE, REACH
• Compatible Integration (API): ONVIF Profile S, ONVIF Profile G, ISAPI, SDK
• Compression: H.265 Plus, H.265, H.264, H.264 Plus, MJPEG
• Environmental: Outdoor
• Field of View (Horizontal): 107
• Iris: Fixed Iris
• Languages: English, Turkish, Spanish
• Manufacturer Website: https://us.hikvision.com/en
• Max Power Consumption: 7.5 Watts
• Max. Storage Capacity: 256 GB
• Minimum Illumination (B/W): 0 lux with IR illumination on
• Network Interface: 1x Rj-45 10/100 Base-T
• Night Vision Range (ft): 98
• Noise Reduction: 3D DNR
• Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
• Power Supply: 12 VDC 0.5A, PoE (IEEE 802.3af)
• Product Series: Hikvision Pro Series, Hikvision Value Series
• Protection Code: IP67, IK10
• Remote Users: Up to 32
• Sensor Size: 1/2.8"
• Sensor Type: CMOS
• Shutter Speed: 1/3-1/100000s
• Special Technologies: Hikvision AcuSense
• Technology: Network (IP)
• Wavelength (nm): 850
• Power Consumption: 12 VDC, 0.5 A, max. 6 W, PoE (802.3af, 36 V to 57 V), 0.25 A to 0.15 A, max. 7.5 W
• Operating Humidity: 95% or less (non-condensing)
• S/N Ratio: >52 dB
