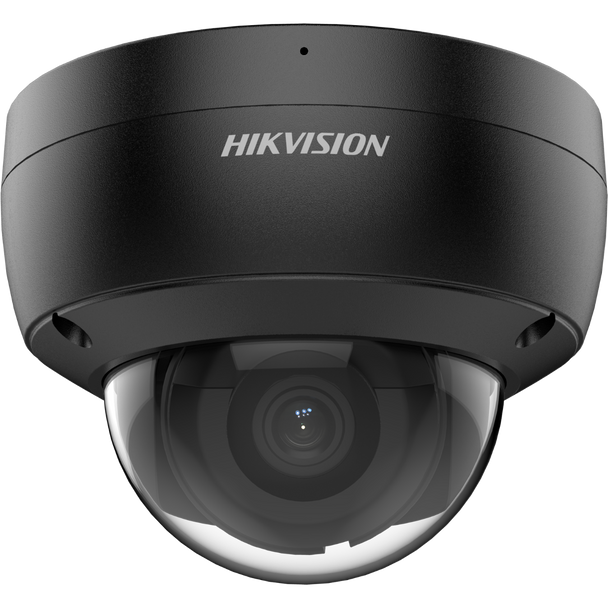

Hikvision DS-2CD2143G2-IU 2.8mm BLACK 4MP Night Vision Outdoor Dome IP Security Camera with 2.8mm Fixed Lens and Built-in Microphone replacement

Product Description

The Hikvision DS-2CD2143G2-IU 2.8mm BLACK is a 4MP outdoor dome IP security camera featuring a 2.8mm fixed lens and a built-in microphone. AcuSense technology enhances alarm efficiency by focusing on human and vehicle targets. It provides high-quality imaging and clear visuals, even in strong backlight conditions.

• High quality imaging with 4 MP resolution
• Clear imaging against strong backlight due to 120 dB WDR technology
• Efficient H.265+ compression technology

Product Highlights

This camera is water and dust resistant (IP67) and vandal resistant (IK10), suitable for outdoor use. It supports two-way audio and offers real-time security.

Product Information

Standard Information

• Brand: HIKVISION
• Manufacturer Part Number: DS-2CD2143G2-IU 2.8mm BLACK

Technical Specifications

• Aperture: F1.6
• Audio Capability: Two-Way Audio
• Audio Compression: G.711ulaw G.711alaw G.722.1 G.726 MP2L2 PCM MP3 AAC
• Audio Support: Built-in Microphone
• Built-in Features: Built-in Analytics
• Camera Style: Dome
• Color: Black
• Compatible Integration (API): ONVIF Profile G ONVIF Profile S ISAPI SDK
• Compression: H.265 H.264 H.265 Plus H.264 Plus MJPEG
• Connection Type: Wired
• Day/Night: ICR (True Day/Night) Day (Color) Night (B/W) Auto Schedule
• Detect (ft): 219.81
• Durability: Weatherproof Vandal Proof
• Environmental: Outdoor
• Field of View (Horizontal): 103
• Identify (ft): 19.68
• Iris: Fixed Iris
• Languages: English Russian Estonian Bulgarian Hungarian Greek German Italian Czech Slovak French Polish Dutch Portuguese Spanish Romanian Danish Swedish Norwegian Finnish Croatian Slovenian Serbian Turkish Korean Traditional Chinese Thai Vietnamese Japanese Latvian Lithuanian Portuguese (Brazil) Ukrainian
• Lens Mount: M12
• Lens Size: 2.8mm
• Lens Type: Fixed Lens
• Material: Aluminum Plastic
• Max Power Consumption: 6.5 Watts
• Max. FPS and Resolution: 30fps at 2688 x 1520
• Max. Storage Capacity: 256 GB
• Minimum Illumination (B/W): 0 lux
• Minimum Illumination (Color): 0.005 Lux
• Mounting: Pole Mount Corner Mount Pendant Mount Wall Mount
• Network Interface: 1x RJ-45 10M/100M self-adaptive Ethernet interface
• Night Vision Range (ft): 98
• Night Vision Type: Night Vision (IR)
• Noise Reduction: 3D DNR
• Observe (ft): 85.30
• Operating Humidity: 0% to 95% (non-condensing)
• Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
• Power Supply: 12 VDC PoE (IEEE 802.3af)
• Product Series: Hikvision AcuSense Series Hikvision Pro Series
• Protection Code: IP67 IK10
• Recognize (ft): 42.65
• SD Card Support: SD Card Supported
• Sensor Size: 1/3"
• Sensor Type: CMOS
• Shutter Speed: 1/3-1/100000s
• Special Technologies: Hikvision AcuSense
• Technology: Network (IP)
• Wavelength (nm): 850
• Wide Dynamic Range (WDR): True WDR 120dB
• Image Sensor: 1/3" Progressive Scan CMOS
• Max. Resolution: 2688 × 1520
• Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
• Focal Length & FOV: 2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122° 4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100°
• Iris Type: Fixed
• DORI: 2.8 mm: D: 67 m, O: 26 m, R: 13 m, I: 6 m 4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 m
• Supplement Light Type: IR
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm
• Main Stream: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• Video Compression: Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR/VBR
• Scalable Video Coding (SVC): Yes
• Region of Interest (ROI): 1 fixed region for main stream and sub-stream
• Audio Bit Rate: 64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/16Kbps-64Kbps(AAC-LC)/32-192Kbps(MP2L2)/8-320Kbps(MP3)
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering: Yes
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile G), ISAPI, SDK, ISUP
• User/Host: Up to 32 users. 3 user levels: administrator, operator and user
• Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser: Plug-in required live view: IE 10, IE 11 Plug-in free live view : Chrome 57.0+, Firefox 52.0+
• Image Parameters Switch: Yes
• Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night Switch: Day, Night, Auto, Schedule
• SNR: ≥ 52 dB
• Image Enhancement: BLC, HLC, 3D DNR
• Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
• On-Board Storage: Built-in microSD, up to 512 GB
• Built-in Microphone: Yes
• Reset Key: Yes
• Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• Smart Event: Face detection
• Linkage: Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email
• Perimeter Protection: Line crossing, intrusion Support alarm triggering by specified target types (human and vehicle)
• Power: 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
• IR Distance: 30m/98.42ft
• S/N Ratio: = 52 dB
• Power Consumption: 12 VDC
• Angle of View: 2.8 mm, horizontal FOV 103
• Digital Noise Reduction: Yes
• Weatherproof: IP67
• Infrared Distance: 61~100 Feet
• Resolution: 4 Megapixel
• Voltage: 12vDC, PoE
• Compression Method: H.264, M-JPEG, H.264+, H.265, H.265+
• Image Device: 1/3" Progressive Scan CMOS
• Electronic Shutter: 1/3 s to 1/100,000 s
• Mount Type: Ceiling, Wall
• Audio: Yes
• Motion Detection Tracking: Yes
• Privacy Masking: Yes
• Wide Dynamic Range: Yes
• Mirror: Yes
• Auto Gain Control: Yes
• Automatic White Balance: Yes
• Back Light Compensation: Yes
• Flickerless: Yes
