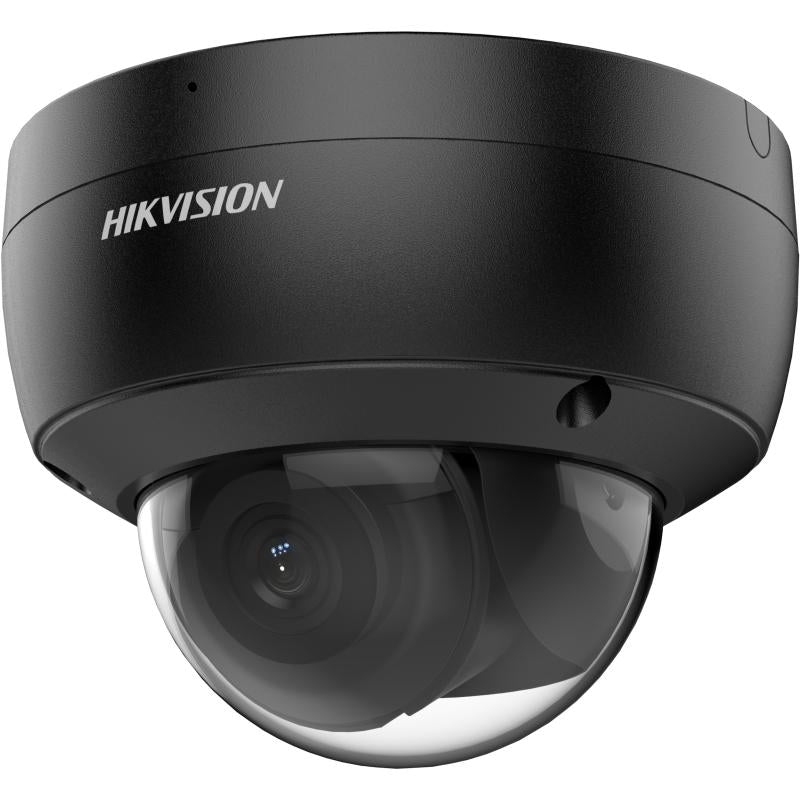

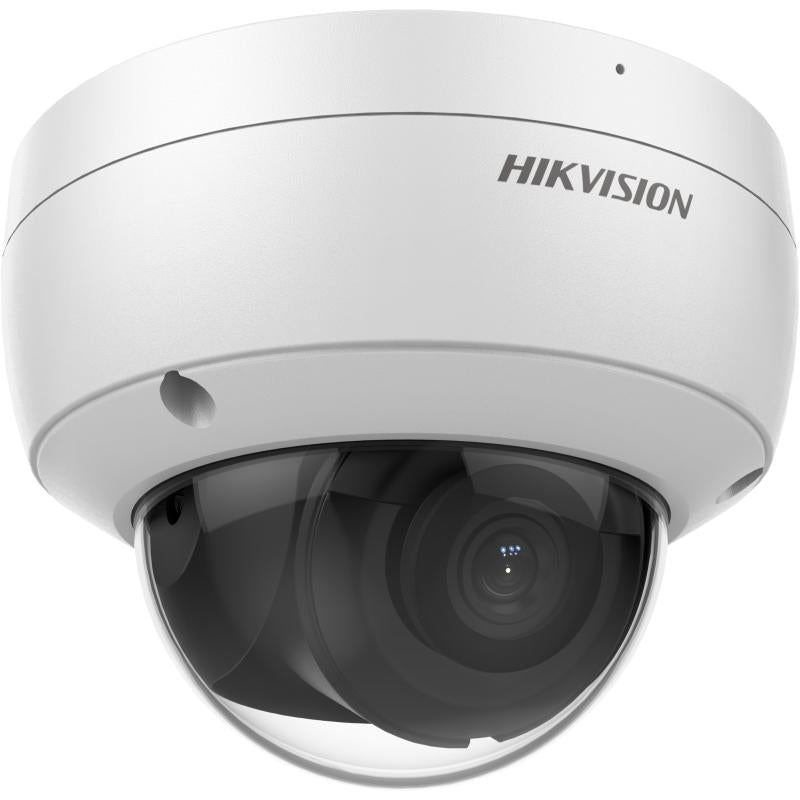

Hikvision DS-2CD2143G2-IU 2.8MM 4 MP AcuSense Built-in Mic Fixed Dome Network Camera

Product Description

The HIKVISION DS-2CD2143G2-IU 2.8MM is a 4 MP AcuSense fixed dome network camera delivering high-quality imaging. It features 120 dB WDR technology for clear imaging against strong backlight and efficient H.265+ compression. The built-in microphone provides real-time audio security. This camera is water and dust resistant (IP67) and vandal resistant (IK10).

• High quality imaging with 4 MP resolution
• Clear imaging against strong backlight due to 120 dB WDR technology
• Efficient H.265+ compression technology

Product Highlights

This network camera focuses on human and vehicle targets classification based on deep learning, enhancing alarm efficiency.

Product Information

Standard Information

• Brand: HIKVISION
• Manufacturer Part Number: DS-2CD2143G2-IU 2.8MM
• Country of Origin: China

Technical Specifications

• Image Sensor: 1/3" Progressive Scan CMOS
• Max. Resolution: 2688 × 1520
• Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
• Focal Length & FOV: 2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122° 4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100°
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.6
• DORI 2.8 mm: D: 67 m, O: 26 m, R: 13 m, I: 6 m
• DORI 4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 m
• Supplement Light Type: IR
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm
• Main Stream: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• Video Compression: Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR/VBR
• Scalable Video Coding (SVC): Yes
• Region of Interest (ROI): 1 fixed region for main stream and sub-stream
• Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate: 64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/16Kbps-64Kbps(AAC-LC)/32-192Kbps(MP2L2)/8-320Kbps(MP3)
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering: Yes
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile G), ISAPI, SDK, ISUP
• User/Host: Up to 32 users. 3 user levels: administrator, operator and user
• Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser: Plug-in required live view: IE 10, IE 11 Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
• Image Parameters Switch: Yes
• Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night Switch: Auto/Scheduled
• Wide Dynamic Range (WDR): True WDR 120dB
• SNR: ≥ 52 dB
• Image Enhancement: BLC/3D DNR
• Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
• On-Board Storage: Built-in microSD, up to 512 GB
• Built-in Microphone: Yes
• Reset Key: Yes
• Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• Smart Event: Face detection
• Linkage: Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email
• Perimeter Protection: Line crossing, intrusion Support alarm triggering by specified target types (human and vehicle)
• Power: 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
• Dimension: Ø121.4 × 92.2 mm (Ø4.8″ × 3.7″)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language: 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function: Anti-flicker, heartbeat, password reset via e-mail, pixel counter
• EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
• Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• Protection: IP67 (IEC 60529-2013), IK10 (IEC 62262: 2002)
• Frame Rate: 50 Hz: 25 fps (2688 × 1520) 60 Hz: 30 fps (2688 × 1520)
• Signal System: PAL/NTSC
• Slow shutter: Support
• Lens: 2.8 mm, horizontal field of view: 102°
• IR Range: Up to 30m
• Digital noise reduction: 3D DNR
• Triple Streams: Yes
• ROI: Support 1 fixed region for main stream and sub stream separately
• Function: One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering
• Communication Interface: 1 RJ45 10M / 100M Ethernet interface
• On-board storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
• Behavior Analysis: Line crossing detection, Intrusion detection
• Line Crossing Detection: Cross a pre-defined virtual line
• Intrusion Detection: Enter and loiter in a pre-defined virtual region
• Recognition: Face Detection
• Video Capture Resolution: 4MP
• Viewing Angle: 103 Degrees
• Night Vision Range: 98 Feet
• Low light technology: Up to 98ft IR Black and White Night Vision
• Room Type: Classroom, Kitchen, Living Room, Office
• Video Capture Format: MP4
• Effective Still Resolution: 4 MP
• International Protection Rating: IP67
• Maximum Webcam Image Resolution: 4 MP
• Audio Visual Recording Capabilities: Video
• ADI Part Number: HX-OD2143G2B
• Brand Name: Hikvision
• Manufacturer: Hikvision
• Manufacturer Part Number: DS-2CD2143G2-IU 2.8MM(BLACK)
• Product Model: DS-2CD2143G2-IU
• Product Name: 4 MP AcuSense Fixed Dome Network Camera
• Product Series: Hikvision AcuSense Series Hikvision Pro Series
• Product Type: Network Camera
• Connectivity Technology: Wired
• Effective Camera Resolution: 4MP
• Field of View: Diagonal, Horizontal, Vertical
• Lens Mount Type: M12
• Lens Type: Fixed
• Maximum Aperture: f/1.6
• Maximum Frame Rate: 30fps
• Minimum Focal Length: 2.8mm
• Night Vision: Yes
• Night Vision Type: Night Vision (IR)
• Video Formats: H.264, H.265, MJPEG
• Image Sensor Type: CMOS
• Night Vision Distance: 98.43 ft
• Wide Dynamic Range: Yes
• Ingress Protection Rating: IP67
• NDAA Compliant: No
• TAA Compliant: No
• Maximum Video Resolution: 2560 x 1440
• Maximum Operating Temperature: 140°F (60°C)
• Minimum Operating Temperature: -22°F (-30°C)
• Operating Humidity: 0% to 95% (non-condensing)
• Longest Shutter Speed: 1/3 Second
• Shortest Shutter Speed: 1/100000 Second
• Network (RJ-45): Yes
• Focal Length: 2.8mm
• Lens Included: Yes
• Maximum Focal Length: 2.8mm
• Remote Management: Yes
• ADI Part Number Replaces: HX-OD2143F2B, HX-OD2143F4B, HX-OD2183F2B
• Model Number Replaces: DS-2CD2143G0-IB 2.8MMDS-2CD2143G0-IB(4MM), DS-2CD2183G0-IB 2.8MM
• Durability: Dust Resistant, Impact Resistant, Vandal Resistant, Waterproof
• Form Factor: Dome
• Input Voltage: 12V DC
• Diameter: 4.8"
• Mount Type: Ceiling Mount, Corner Mount, Pole Mount, Wall Mount
• Recording Formats: HD
• Storage Type: Memory Card
• Maximum Resolution: 4MP
• Environmental Certification: REACH, RoHS, WEEE
• Environmentally Friendly: Yes
• Features: 3D Digital Noise Reduction, Back Light Compensation (BLC), Cross Line Detection, Day/Night, Face Detection, Highlight Compensation (HLC), Motion Detection, SD Card Local Storage, Tampering Alarm
• Impact Protection Rating: IK10
• Indoor/Outdoor: Outdoor
• Audio Capability: Two-Way Audio
• Audio Support: Built-in Microphone
• Built-in Features: Built-in Analytics
• Certifications: FCC CE RoHS UL Listed
• Compatible Integration (API): ONVIF Profile G ONVIF Profile S ISAPI SDK
• Compression: H.265 H.264 H.265 Plus H.264 Plus MJPEG
• Connection Type: Wired
• Day/Night: ICR (True Day/Night) Day (Color) Night (B/W) Auto Schedule
• Detect (ft): 219.81
• Environmental: Outdoor
• Field of View (Horizontal): 103
• Identify (ft): 19.68
• Iris: Fixed Iris
• Languages: English Russian Estonian Bulgarian Hungarian Greek German Italian Czech Slovak French Polish Dutch Portuguese Spanish Romanian Danish Swedish Norwegian Finnish H Croatian Slovenian Serbian Turkish Korean Traditional Chinese Thai Vietnamese Japanese Latvian Lithuanian Portuguese (Brazil) Ukrainian
• Lens Size: 2.8mm
• Material: Aluminum Plastic
• Max Power Consumption: 6.5 Watts
• Max. FPS and Resolution: 30fps at 2688 x 1520
• Max. Storage Capacity: 256 GB
• Minimum Illumination (B/W): 0 lux
• Minimum Illumination (Color): 0.005 Lux
• Mounting: Pole Mount Corner Mount Pendant Mount Wall Mount
• Network Interface: 1x RJ-45 10M/100M self-adaptive Ethernet interface
• Noise Reduction: 3D DNR
• Observe (ft): 85.30
• Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
• Power Supply: 12 VDC PoE (IEEE 802.3af)
• Protection Code: IP67 IK10
• Recognize (ft): 42.65
• SD Card Support: SD Card Supported
• Sensor Size: 1/3"
• Sensor Type: CMOS
• Shutter Speed: 1/3-1/100000s
• Special Technologies: Hikvision AcuSense
• Technology: Network (IP)
• Wavelength (nm): 850
• Power Consumption: 12 VDC
• Minimum Scene Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on
• Angle of View: 2.8 mm, horizontal FOV 103
• Weatherproof: IP67
• Infrared Distance: 61~100 Feet
• Resolution: 4 Megapixel
• Voltage: 12vDC, PoE
• Compression Method: H.264, M-JPEG, H.264+, H.265, H.265+
• Image Device: 1/3" Progressive Scan CMOS
• Electronic Shutter: 1/3 s to 1/100,000 s
• Audio: Yes
• Motion Detection Tracking: Yes
• Privacy Masking: Yes
• Mirror: Yes
• Auto Gain Control: Yes
• Automatic White Balance: Yes
• Back Light Compensation: Yes
• Flickerless: Yes
• Illumination: 850 nm IR LEDs up to 98.4' / 30 m
• OS Compatibility: Android/iOS
