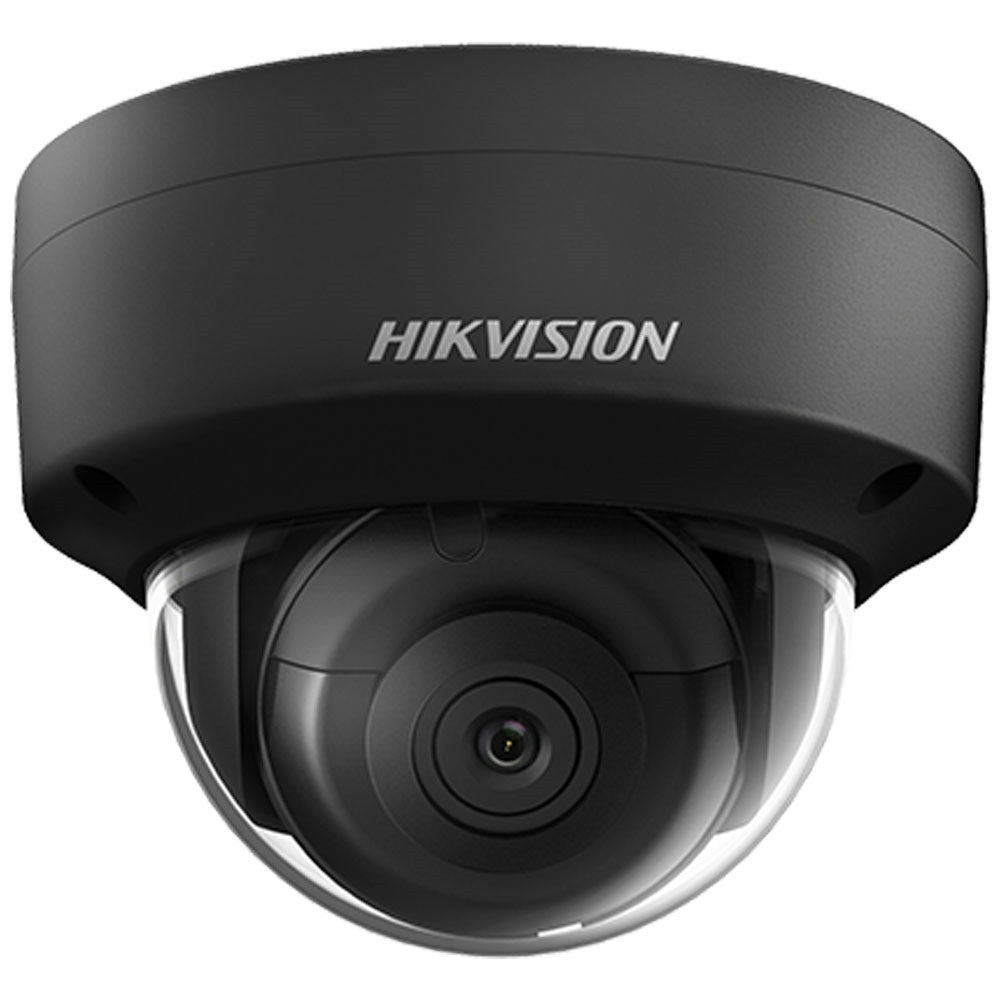

Hikvision DS-2CD2143G0-IB 2.8mm 4MP Outdoor WDR Fixed Dome Network Camera

Product Description

The Hikvision DS-2CD2143G0-IB 2.8mm is a 4MP outdoor network camera delivering high-quality imaging. It features H.265+ compression, 120 dB true WDR technology for clear imaging against strong back light, and a robust, full-metal structure. This camera is water and dust resistant to IP67 standards and vandal-proof to IK10 standards.

• High quality imaging with 4 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology

Product Highlights

This network camera is ideal for outdoor surveillance, offering high resolution, efficient compression, and robust protection against environmental factors and vandalism.

Product Information

Standard Information

• Brand: HIKVISION
• Manufacturer Part Number: DS-2CD2143G0-IB 2.8mm

Technical Specifications

• Image Sensor: 1/3" Progressive Scan CMOS
• Min. Illumination: Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter Speed: 1/3 s to 1/100,000 s
• Slow Shutter: Yes
• Wide Dynamic Range: 120dB
• Day & Night: IR Cut Filter
• Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
• Focus: Fixed
• Lens Type: 2.8/4 mm
• FOV: 2.8 mm, horizontal FOV: 103°, vertical FOV: 58°, diagonal FOV: 123°,4 mm, horizontal FOV: 83°, vertical FOV: 45°, diagonal FOV: 99°
• Aperture: F1.6
• Lens Mount: M12
• Aperture Type: Fixed
• IR Range: Up to 30 m
• Wavelength: 850nm
• Max. Resolution: 2688 × 1520
• Main Stream: 50Hz:25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
• Sub Stream: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Third Stream: 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
• Video Compression: Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Main Profile/High Profile
• H.265 Type: Main Profile
• H.264+: Main stream supports
• H.265+: Main stream supports
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Environment Noise Filtering: Yes
• Audio Sampling Rate: 8kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
• Audio Bit Rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
• Simultaneous Live View: Up to 6 channels
• API: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
• Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• User/Host: Up to 32 users,3 levels: Administrator, Operator and User
• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
• Network Storage: Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser: Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
• Alarm Trigger: Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
• Day/Night Switch: Day/Night/Auto/Schedule
• Target Cropping: No
• DNR: 3D DNR
• Image Enhancement: BLC/3D DNR/HLC
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
• Audio: 1 input (line in/mic in), 1 output (line out), terminal block, mono sound
• Alarm: 1 input, 1 output (max. 12 VDC, 30 mA), terminal block
• Video Output: No
• On-board Storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
• Hardware Reset: Yes
• Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
• Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart Event: Line crossing detection, intrusion detection, face detection
• Firmware Version: 5.6.3
• Web Client Language: 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• General Function: Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
• Startup and Operating Conditions: -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
• Power Supply: 12 VDC ± 25%, Φ 5.5 mm coaxial power plug,PoE (802.3af, class 3)
• Power Consumption and Current: 12 VDC, 0.5 A, max. 6 W,PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7.5 W
• Protection: IK10, IP67
• Audio Capability: True
• Camera Style: Dome
• Compression: H.265 H.265+ H.264 H.264+ MJPEG
• Day/Night: True
• Lens Size: 2.8mm
• Material: Metal
• Max Power Consumption: 7.5 Watts
• Minimum Illumination (B/W): 0 Lux with IR
• Minimum Illumination (Color): 0.01 Lux @ F1.2
• Night Vision Range (ft): 98
• Operating Humidity: 0% to 95% RH (non-condensing)
• Operating Temperature: -30°C to 60°C (-22°F to 140°F)
• SD Card Support: True
• Sensor Size: 1/3"
• Sensor Type: CMOS
• Technology: Network (IP)
• Connectivity Type: IP
• Ethernet Ports: 1x 10/100
• PoE: 802.3af Class 3
• Resolution: up to 4MP @ 30fps
• Video Codecs: H.265+, H.265, H.264+, H.264, MJPEG
• Angle Adjustment - Pan: 0° to 360°
• Angle Adjustment - Tilt: 0° to 75°
• Angle Adjustment - Rotate: 0° to 360°
• Minimum Illumination - Color: 0.018 lux
• Minimum Illumination - IR: 0 lux
• Infrared Range: up to 100ft (30m)
• Edge Storage: microSD, microSDHC, microSDXC
• ONVIF: Profile G, Profile S
• Durability Ratings: IP67, IK10, TVS 2000V
• Lens: fixed 2.8mm, f/1.6
