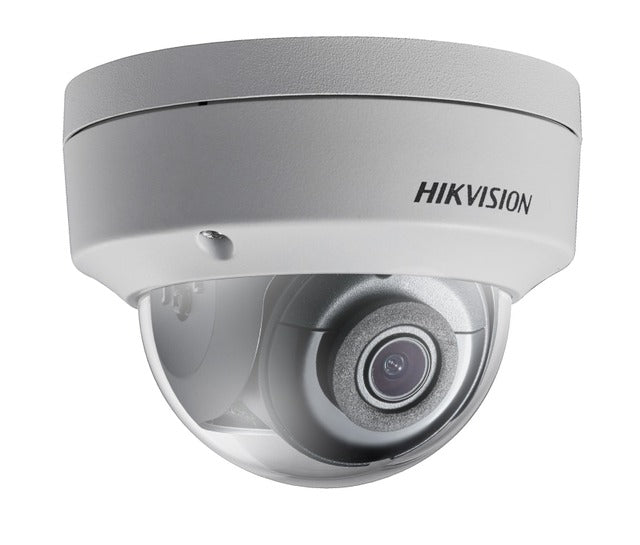

Hikvision Ds-2cd2143g0-i 4mm 4MP Ip Dome Camera H.265

Product Description

The HIKVISION ds-2cd2143g0-i 4mm is a 4-megapixel fixed-lens IP dome camera built around a 1/3-inch progressive scan CMOS sensor. It delivers up to 2560x1440 resolution at 30 frames per second, making it well-suited for high-detail surveillance applications where clarity and low-light performance are both required. The camera achieves a minimum illumination of 0.01 Lux at F1.2 with AGC enabled and drops to 0 Lux when IR illumination is active. Video is encoded using H.265+, H.265, H.264+, or H.264 across three simultaneous streams. Licensed security contractors and system integrators are the primary installers of this unit.

This camera is designed for use in both residential and light commercial IP surveillance systems. The 4mm fixed focal length provides a standard wide-angle field of view appropriate for interior rooms, corridors, and entry points. The 120dB wide dynamic range handles scenes with mixed lighting conditions such as lobbies with exterior windows. Two behavior analysis channels and face detection are built into the onboard video analytics, reducing the need for additional server-side processing in smaller deployments.

Key Features

• 4MP resolution at 2560x1440 up to 30fps via 1/3-inch progressive scan CMOS sensor
• H.265+ and H.265 compression for reduced storage and bandwidth consumption
• 120dB Wide Dynamic Range for high-contrast lighting environments
• Minimum illumination of 0.01 Lux at F1.2 (AGC ON); 0 Lux with IR active
• Three simultaneous video streams for flexible monitoring and recording configurations
• Built-in behavior analysis and face detection analytics

Compatibility

Designed as an OEM-style replacement and standard network camera for IP-based video surveillance systems supporting ONVIF and H.265/H.264 protocols.

Installation Notes

Installation should be performed by a licensed low-voltage or security systems contractor in accordance with local codes. Power down the network switch port or PoE injector before making wiring connections. Confirm network switch PoE class compatibility before mounting. Do not expose the camera to voltages or environmental conditions outside the manufacturer-rated range.

Technical Specifications

• Image Sensor: 1/3-inch Progressive Scan CMOS
• Resolution: 2560x1440 at 30fps
• Focal Length: 4mm fixed
• Minimum Illumination (Color): 0.01 Lux at F1.2 AGC ON
• Minimum Illumination (Color): 0.018 Lux at F1.6 AGC ON
• Minimum Illumination (IR): 0 Lux with IR active
• Video Compression: H.265+, H.265, H.264+, H.264
• Video Streams: 3 simultaneous
• Wide Dynamic Range: 120dB
• Analytics: 2 behavior analyses, face detection

Standard Information

• Brand: HIKVISION
• Manufacturer Part Number: ds-2cd2143g0-i 4mm
