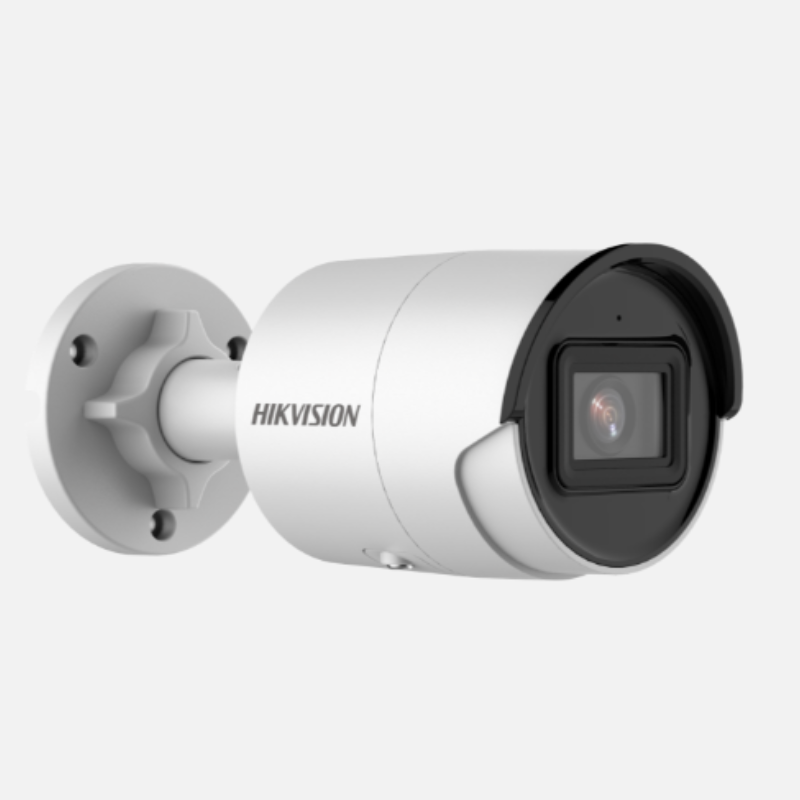

Hikvision DS-2CD2043G2-IU 2.8mm 4 MP AcuSense Fixed Bullet Network Camera

Product Description

The HIKVISION DS-2CD2043G2-IU 2.8MM is a 4 MP AcuSense fixed bullet network camera providing high-quality imaging. It features 120 dB WDR technology for clear imaging against strong backlight and efficient H.265+ compression technology. The camera is water and dust resistant (IP67) and focuses on human and vehicle targets classification based on deep learning.

• High quality imaging with 4 MP resolution
• Clear imaging against strong backlight due to 120 dB WDR technology
• Efficient H.265+ compression technology

Product Highlights

This network camera delivers reliable surveillance with advanced features like AcuSense technology and weather-resistant design, suitable for various monitoring applications.

Product Information

Standard Information

• Brand: HIKVISION
• Manufacturer Part Number: DS-2CD2043G2-IU 2.8MM

Technical Specifications

• Image Sensor: 1/3"-Type CMOS
• Max. Resolution: 2688 × 1520
• Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
• Focal Length & FOV: 2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122° 4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100° 6 mm, horizontal FOV 52°, vertical FOV 28°, diagonal FOV 61°
• Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional
• Lens Mount: M12
• Aperture: F1.6
• Iris Type: Fixed
• DORI: 2.8 mm: D: 67 m, O: 26 m, R: 13 m, I: 6 m 4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 m 6 mm: D: 120 m, O: 47,m, R: 24,m, I: 12 m
• Supplement Light Range: Up to 40 m
• Supplement Light Type: IR
• IR Wavelength: 850 nm
• Smart Supplement Light: Yes
• Main Stream: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• Video Compression: Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR/VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region of Interest (ROI): 1 fixed region for main stream and sub-stream
• Audio Compression: -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate: -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/16-64 Kbps(AAC-LC)
• Audio Sampling Rate: -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering: -U: Yes
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
• User/Host: Up to 32 users. 3 user levels: administrator, operator and user
• Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser: Plug-in required live view: IE 10, IE 11 Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
• Image Parameters Switch: Yes
• Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night Switch: Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR): 120 dB
• Image Enhancement: BLC, HLC, 3D DNR
• SNR: ≥ 52 dB
• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD card, up to 512 GB
• Built-in Microphone: -U: Yes
• Reset Key: Yes
• Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
• Smart Event: Line crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle) Face detection
• Linkage: Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture
• Power: 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3af, Class 3, 36 V to 57 V), 0.2 A to 0.13 A, max. 7 W
• Protection: IP67 (IEC 60529-2013)
• Mounting type: Wall Mount
• Video capture resolution: 4 mp
• Number of Items: 1
• Included components: Camera
• Number of channels: 4
• Wireless communication technology: Ir
• Form factor: Bullet, Dome
• Night vision range: 131 Feet
• Material: Metal
• Wattage: 7.5 watts
• Item model number: DS-2CD2043G2-IU
• Type of Bulb: Infrared
• Special Features: AcuSense 4MP Outdoor IR Bullet IP
• Batteries Included?: No
• Batteries Required?: No
• Focal Length: 2.8mm
• Field of View: Horizontal: 103°
• Vertical: 55°
• Diagonal: 122°
• Pan/Tilt: No
• Video I/O: RJ45
• Built-In Microphone: Yes
• Power I/O: 1x DC 1x RJ45
• Effective Sensor Resolution: 4 Megapixel
• IR Cut Filter: Yes Mechanical
• Day/Night: Yes
• DORI Coverage: With 2.8mm Lens: Detect: At 220' / 67.1 m Observe: At 85.4' / 26.0 m Recognize: At 43' / 13.1 m Identify: At 20' / 6.1 m
• Automatic Gain Control: Yes
• Minimum Illumination: 0.005 Lux (Color) 0 Lux (Black and White)
• Maximum Aperture: f/1.6
• Max IP Streaming via RJ45: 2688 x 1520 up to 30.00 fps
• Multi-View Streaming: Yes: 3 Streams
• Security Features: Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection
• Media/Memory Card Slot: Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum]
• Other I/O: 1x RJ45
• 1- or 2-Way Audio: One-Way
• Audio Formats: AAC, G.711, G.722.1, G.726, MP2L2, MP3, PCM
• External Storage Options: NAS
• Analytics: Motion Detection, People Detection, Vehicle Detection, Camera Sabotage/Tampering, Face Detection, Virtual-Line Crossing Detection, Intrusion Detection
• Built-In Installation Aids: Pixel Counter
• Event Trigger: Yes
• Event Action: Recording, Notification, Alarm
• Alarm I/O: No
• PoE Support: Yes: PoE 802.3af
• Power Supply: 6 W
• PoE: 7 W
• Operating Conditions: -22 to 140°F / -30 to 60°C up to 95% Humidity
• Environmental Resistance: Dust/Water-Resistant (IP67)
• Startup Temperature: -22 to 140°F / -30 to 60°C
• Illumination: 850 nm IR LEDs up to 131.2' / 40 m
• Supported Languages: Brazilian Portuguese Bulgarian Croatian Czech Danish Dutch English Estonian Finnish French German Greek Hungarian Italian Japanese Korean Latvian Lithuanian Norwegian Polish Portuguese Romanian Russian Serbian Slovak Slovenian Spanish Swedish Thai Traditional Chinese Turkish Ukrainian Vietnamese
• OS Compatibility: Android/iOS
• Dimensions (W x H x D): 2.8 x 6.4" / 70 x 161.7 mm
• Weight: 1.1 lb / 490 g (Body Only)
