Highland RV18-6Q Insulated Standard Ring Terminal 22 to 18 AWG Conductor Replacement MPN

Product Description

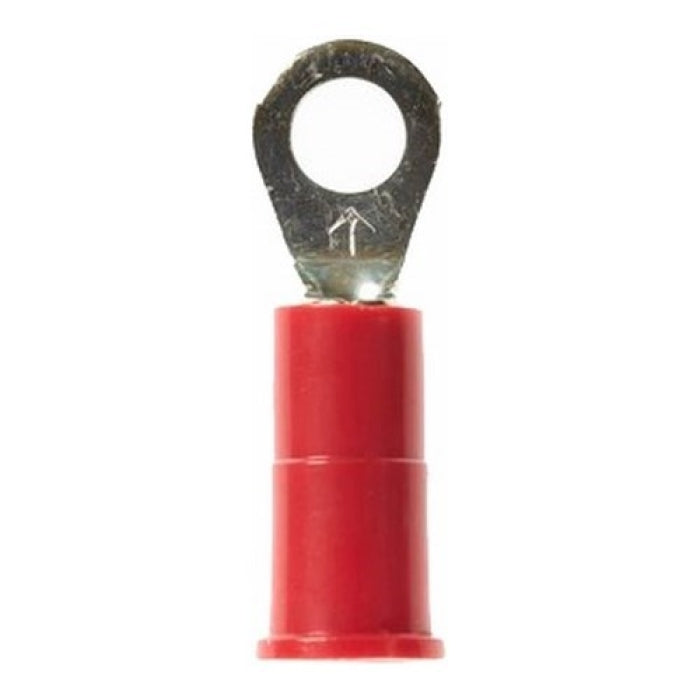

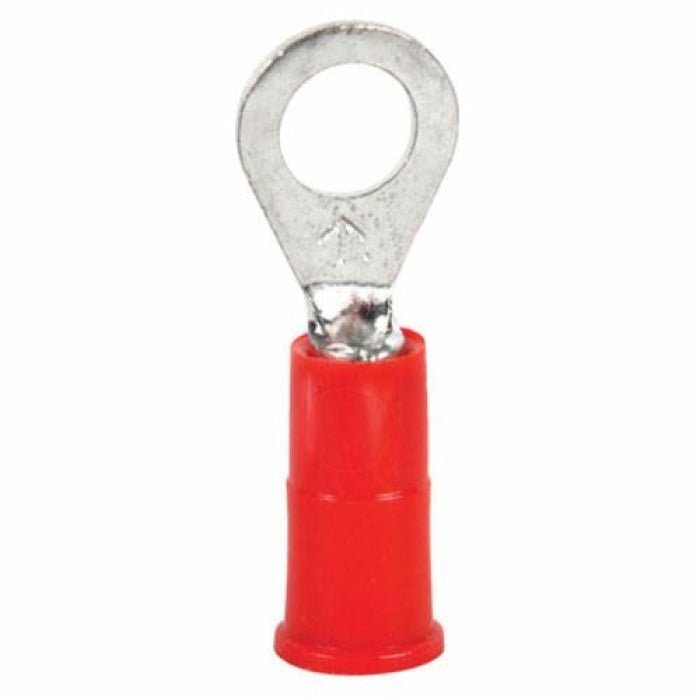

Highland RV18-6Q is an insulated standard ring terminal made by 3M. It is designed for wires with conductor sizes ranging from twenty-two to eighteen AWG. The terminal features a length of point eight inches and a butted seam barrel. This ring terminal is made from electrolytic copper which provides good conductivity and is tin plated for improved corrosion resistance.

• Funnel-designed PVC sleeve facilitates easy wire insertion.
• Standard style ring tongue fits around a #6 stud.
• Suitable for a wide range of applications including building fixtures, luminaires, and signage wiring.

Product Highlights

This terminal provides reliable performance and a secure connection. It is rated for temperatures from minus forty to two hundred twenty-one degrees Fahrenheit and accommodates voltage levels of up to six hundred volts. The design includes a maximum insulation diameter of zero point one four five inches and a clearance of zero point two two inches.

Product Information

Standard Information

• Brand: Highland
• Manufacturer: 3M

Technical Specifications

• MPN: RV18-6Q
• Conductor Size: 22 to 18 AWG
• Stud Size: #6
• Voltage Rating: 600/1000 VAC
• Color: Red
• Insulation Type: Vinyl
• Length: 0.8 inches
• Temperature Rating: -40 to 221 deg F
