Product Description

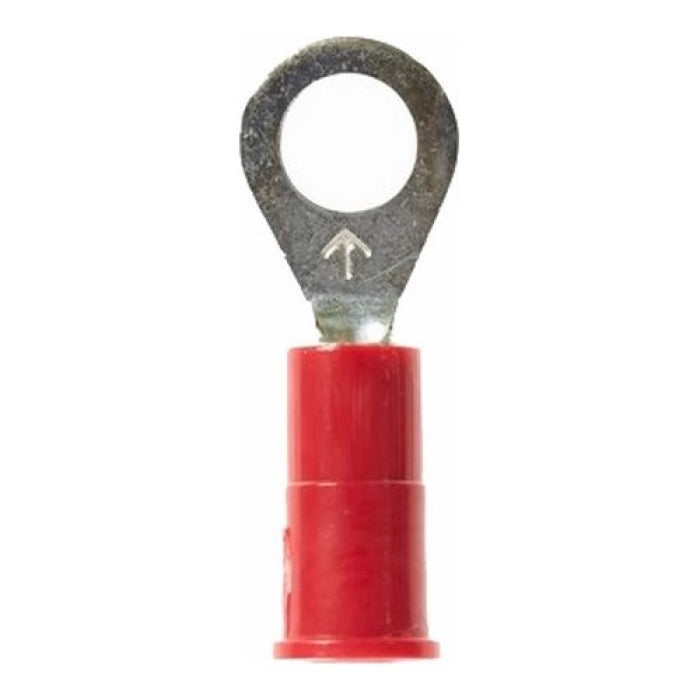

The Highland RV18-10Q by 3M is an insulated standard ring terminal designed for use with conductors ranging from twenty-two to eighteen AWG. This terminal measures zero point ninety-three inches in length and features a butted seam barrel, ensuring a secure connection. The red vinyl insulation offers excellent protection and reliability in various applications.
- Insulated for optimal safety and performance
- Compatible with various conductor sizes
- Designed to withstand temperatures of -40 to 221 degrees Fahrenheit
Product Highlights
The Highland RV18-10Q ring terminal is used in numerous wiring projects, providing a secure fit around a #10 stud with a PVC sleeve for easy wire insertion.
Product Information
Standard Information
-
Brand: Highland
-
Manufacturer: 3M
Technical Specifications
-
MPN: RV18-10Q
-
Conductor Size: 22 to 18 AWG
-
Length: 0.93 inches
-
Stud Size: #10
-
Temperature Rating: -40 to 221 degrees Fahrenheit
-
Material: Copper with tin plating
-
Insulation Type: Vinyl
-
Voltage Rating: 600/1000 VAC
