Highland RV14-6Q Insulated Standard Ring Terminal 16 to 14 AWG Conductor 0.8 in L

3M
Brand: 3M
SKU: RV14-6Q
Availability: In Stock
truck-svgrepo-com

Ships in 1-2 business days

$21.99
$21.99
Manuals:
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

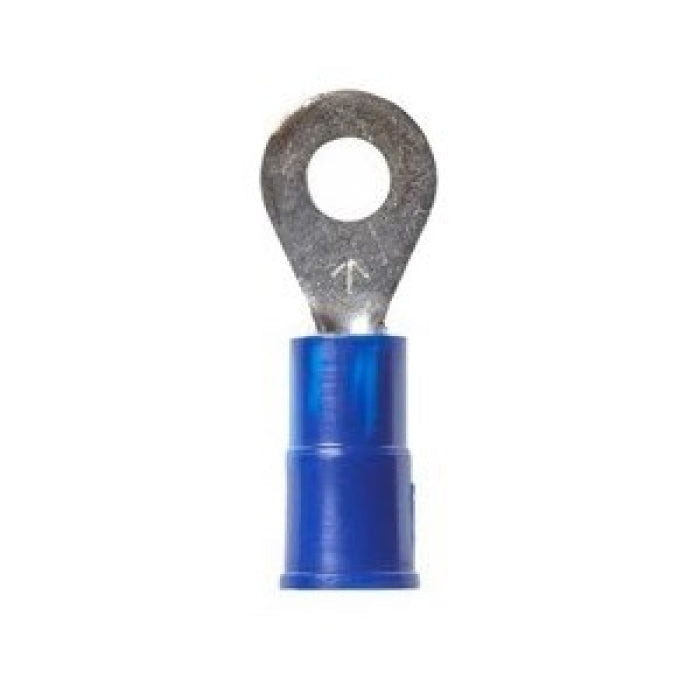

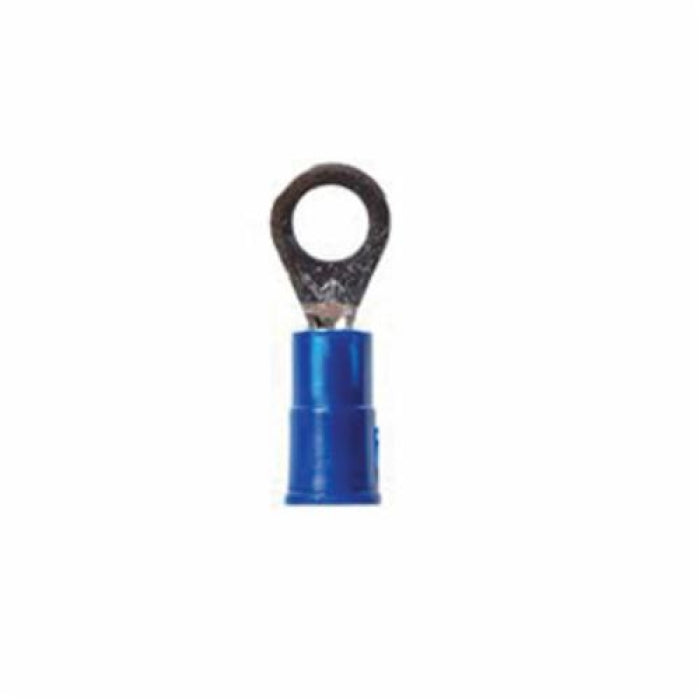

3M Highland RV14-6Q is an insulated standard ring terminal suitable for conductors ranging from 16 to 14 AWG. This terminal has a length of 0.8 inches with a butted seam barrel design that provides a secure fit. Made with blue vinyl, it ensures reliable connections.

  • Insulated standard ring terminal for 16 to 14 AWG conductors.
  • Features a butted seam barrel for enhanced durability.
  • Designed for voltages up to 600/1000 VAC.

Product Highlights

The Highland RV14-6Q terminal is designed for use in various applications including electrical fixtures and signs. It is compatible with a #6 stud and provides excellent conductivity due to its copper material with tin plating.

Product Information

Standard Information

  • Manufacturer: 3M
  • UPC: 051128600412

Technical Specifications

  • Conductor Size: 16 to 14 AWG
  • Length: 0.8 inches
  • Barrel Size: 0.09 inches ID x 0.25 inches L
  • Tongue Size: 0.25 inches W x 0.03 inches THK
  • Temperature Rating: -40 to 221 degrees F
  • Voltage Rating: 600/1000 VAC
  • Finish: Tin Plated
  • Color: Blue
