Highland RV14-14Q Insulated Standard Ring Terminal 12 to 10 AWG Conductor 1/4 Inch Stud 25 per Bag

Product Description

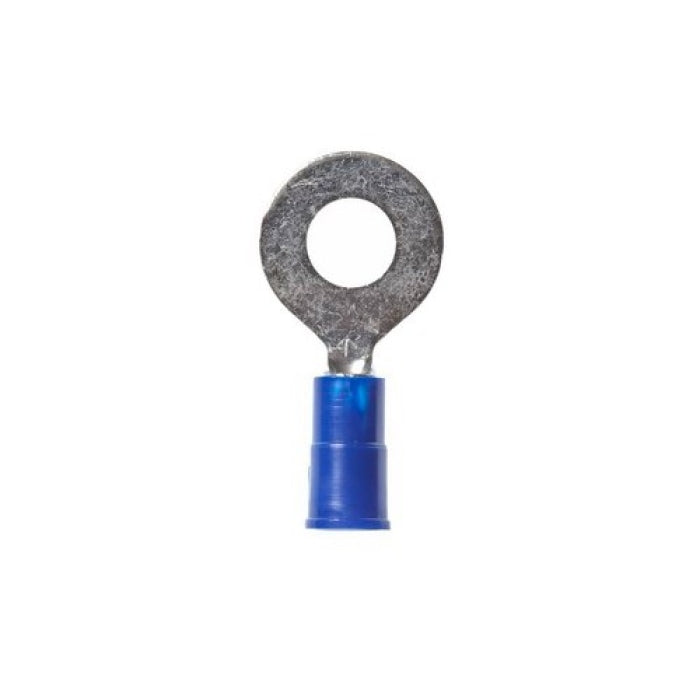

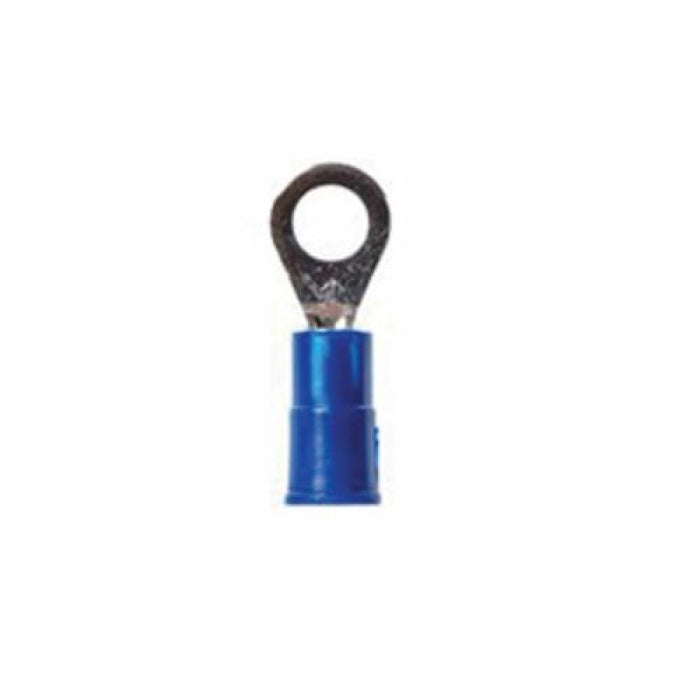

The Highland RV14-14Q is a insulated standard ring terminal manufactured by 3M. It is designed for use with conductors between twelve and ten AWG. This terminal fits a quarter inch stud and has a barrel length of one point zero eight inches.

• Insulated standard design for reliable performance.
• Funnel-designed PVC sleeve for easy wire insertion.
• Made of electrolytic copper with tin plating for corrosion resistance.

Product Highlights

Designed for secure connections, the Highland RV14-14Q provides a dependable solution for your electrical needs.

Product Information

Standard Information

• Manufacturer: 3M
• Minimum Order Quantity: 1

Technical Specifications

• Conductor Size: 12 to 10 AWG
• Stud Size: 1/4 inches
• Length: 1.08 inches
• Barrel Size: 0.09 inches ID x 0.25 inches L
• Insulation Type: Vinyl
• Temperature Rating: -40 to 221 degrees Fahrenheit
• Voltage Rating: 600/1000 VAC
• Approval Standards: UL 486A/B, CSA C22.2
• Tongue Type: Ring
