Highland MTV10-250Q Insulated Male Disconnect Terminal 600/1000 VAC 12 to 10 AWG Bag

Product Description

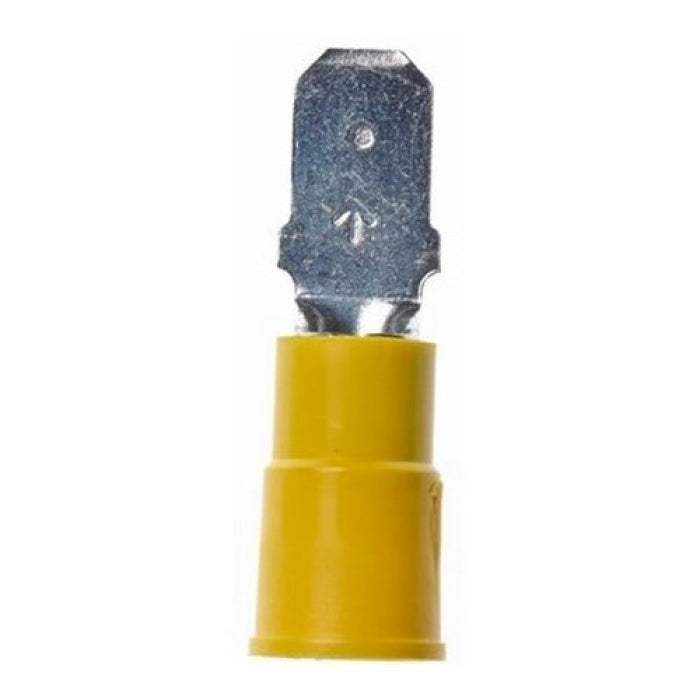

The Highland MTV10-250Q is a male disconnect terminal manufactured by 3M. It features an insulated design suitable for 12 to 10 AWG conductors. This terminal includes a one-quarter inch tab with a butted seam barrel, providing reliable connectivity and durability for various applications.

• Color coded for easy identification
• Compatible with female tabs measuring one-quarter inch wide
• Temperature rated from negative forty to two hundred twenty-one degrees Fahrenheit

Product Highlights

This product's insulated design allows for quick and easy disconnect, making it a perfect choice for electrical applications.

Product Information

Standard Information

• Manufacturer: 3M
• Part Number: MTV10-250Q

Technical Specifications

• Conductor Size: 12 to 10 AWG
• Tab Size: 0.25 inches W x 0.032 inches THK
• Material: Electrolytic copper with vinyl insulation
• Voltage Rating: 600/1000 VAC
• Temperature Rating: -40 to 221 degrees F
• Standard Package: 25 per bag
• Type: Flared, funnel entry
