Product Description

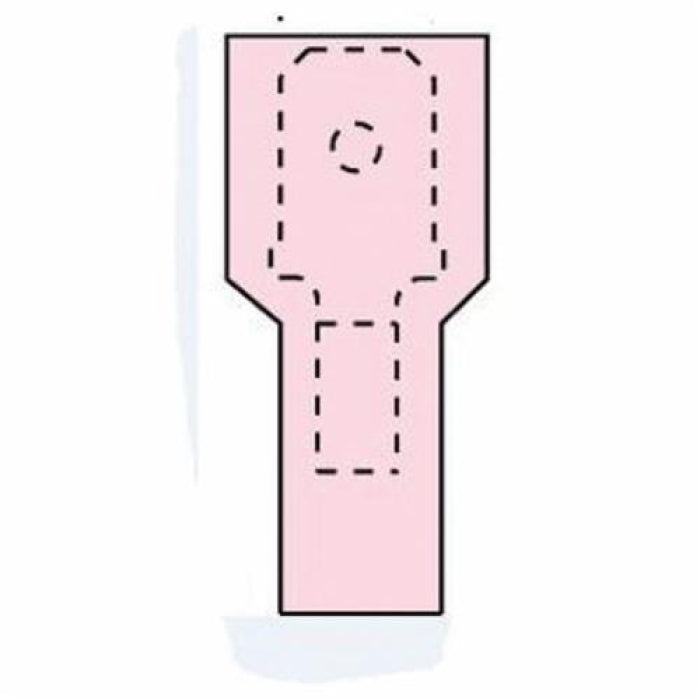

The Highland MTI18-250Q is a fully insulated male disconnect terminal made by 3M. It is designed for use with 22 to 18 AWG conductors and features a one-quarter inch tab. This terminal is built with a butted seam barrel for enhanced wire insertion and holding strength.
- Fully insulated for safety
- Compatible with 22 to 18 AWG conductors
- 1/4 in tab for easy connection
Product Highlights
This terminal meets the requirements for various electrical applications, maintaining performance even in extreme temperatures. It is made from electrolytic copper and has a corrosion-resistant tin plating.
Product Information
Standard Information
-
Brand: Highland
-
Manufacturer: 3M
-
Part Number: 3MI-7000133669
-
UPC: 051128600269
Technical Specifications
-
Conductor Size: 22 to 18 AWG
-
Tab Size: 1/4 in
-
Thickness: 0.032 in
-
Temperature Range: -40 to 221 degrees F
-
Material: Electrolytic Copper/Nylon
-

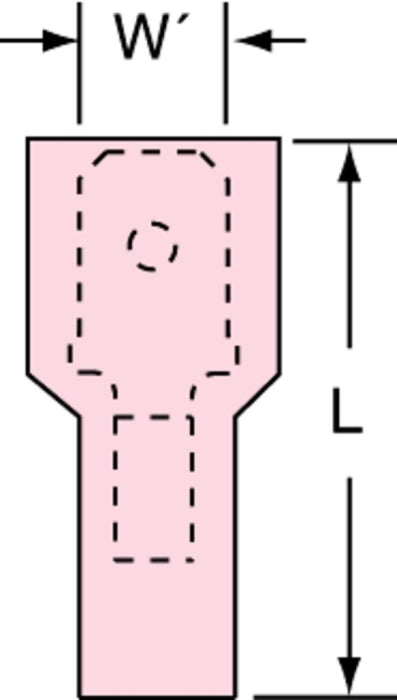

Dimensions: 0.95 in L x 0.44 in W
-
Voltage Rating: 600/1000 VAC
