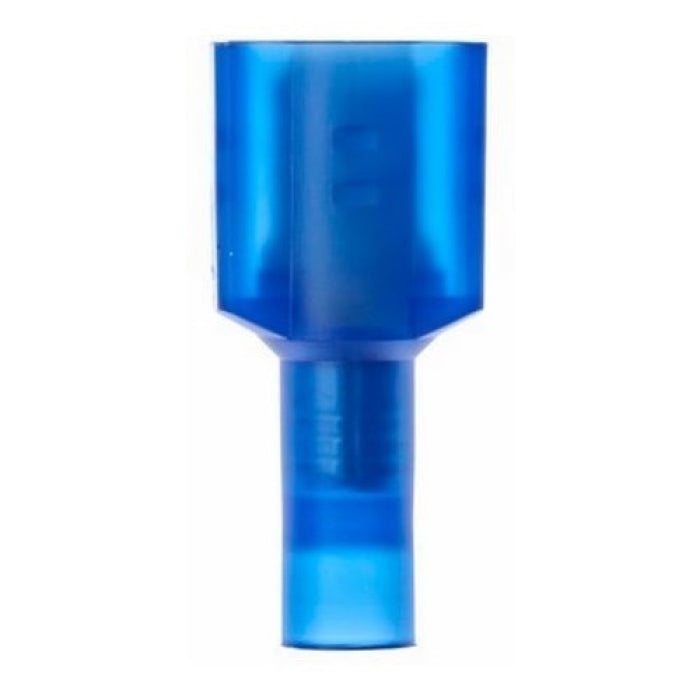

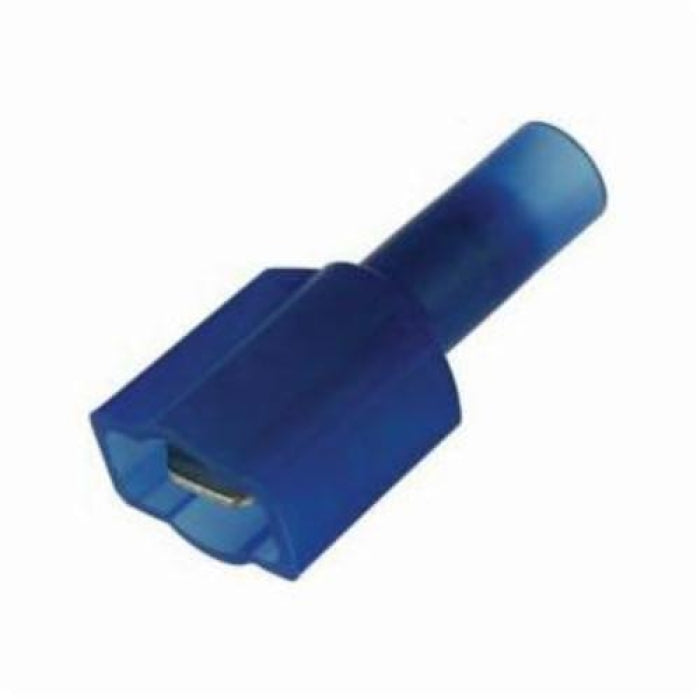

Highland MTI14-250Q Male Disconnect Terminal 600 VAC 16 to 14 AWG

Product Description

The Highland MTI14-250Q is a fully insulated male disconnect terminal designed for use with conductors that are 16 to 14 AWG. The terminal features a tab size of zero point zero thirty-two inches by zero point twenty-five inches, making it suitable for various electrical applications. The terminal is constructed from electrolytic copper and nylon, ensuring reliable conductivity and durability.

• Nylon insulated for safety and reliability
• Provides a quick and easy disconnect feature
• Rated for 600 VAC, perfect for building wire

Product Highlights

This terminal allows for easy and secure wire connections in electrical systems. It is compatible with female tabs that are zero point twenty-five inches wide and offers excellent holding force.

Product Information

Standard Information

• Brand: Highland
• Manufacturer: 3M

Technical Specifications

• MPN: MTI14-250Q
• Conductor Size: 16 to 14 AWG
• Tab Size: 0.032 x 0.25 inches
• Overall Length: 0.95 inches
• Temperature Rating: -40 to 221 degrees Fahrenheit
• Material: Electrolytic Copper/Nylon
• Voltage Rating: 600 VAC for building wire, 1000 VAC for signs and fixtures
• Insulation: Full nylon insulation
