Product Description

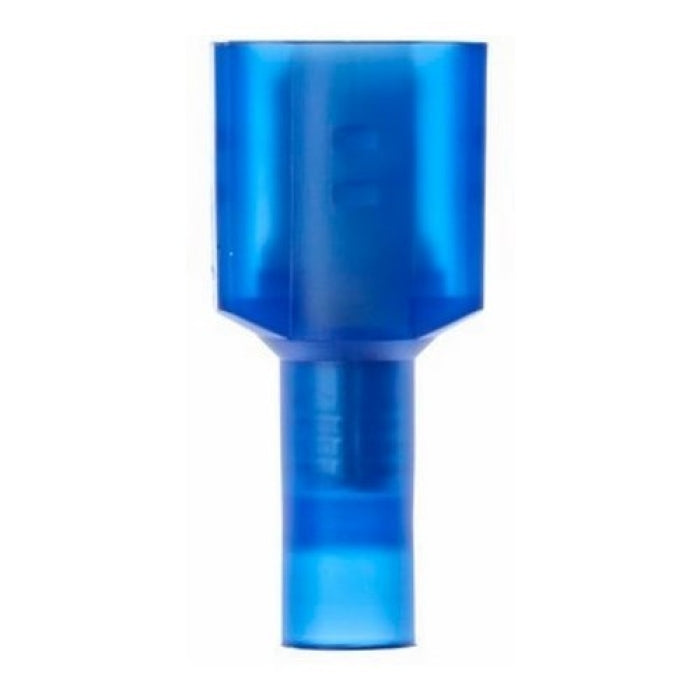

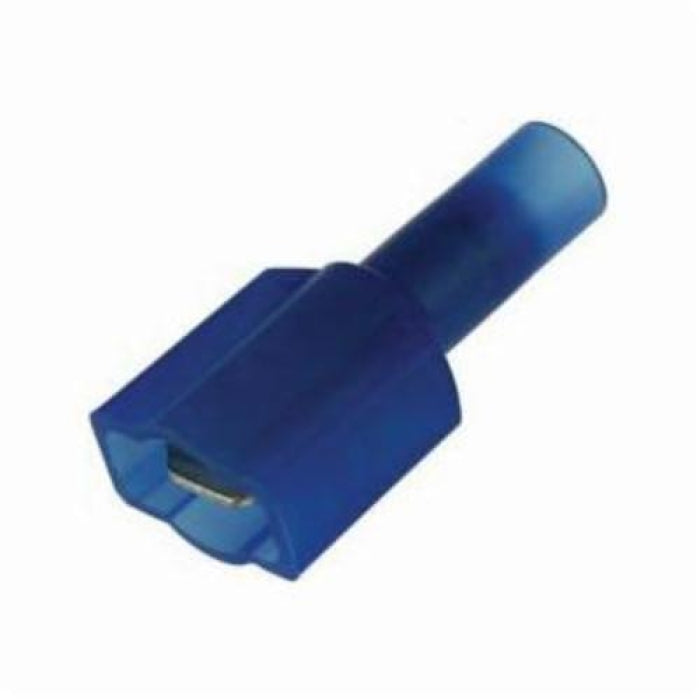

The Highland MTI14-250Q is a fully insulated male disconnect terminal. It is designed for use with conductors sized 16 to 14 AWG. The terminal features a tab size of 0.032 x 0.25 inches and incorporates a butted barrel design for easier wire insertion. This product is made from electrolytic copper and nylon, ensuring good conductivity and strength.
- 600 VAC rating for standard applications
- Temperature range of -40 to 221 degrees Fahrenheit
- Corrosion-resistant tin plating
Product Highlights
The Highland MTI14-250Q is ideal for quick disconnect applications. It provides excellent holding force, making it reliable for electrical connections.
Product Information
Standard Information
-
Brand: Highland
-
Manufacturer: 3M
Technical Specifications
-
MPN: MTI14-250Q
-
Conductor Size: 16 to 14 AWG
-
Tab Size: 0.032 x 0.25 inches
-
Overall Length: 0.95 inches
-
Temperature Rating: -40 to 221 degrees Fahrenheit
-
Voltage Rating: 600 VAC for building wire, 1000 VAC for signs
-
Material: Electrolytic copper and nylon
-
Insulation: Full nylon insulation
