Product Description

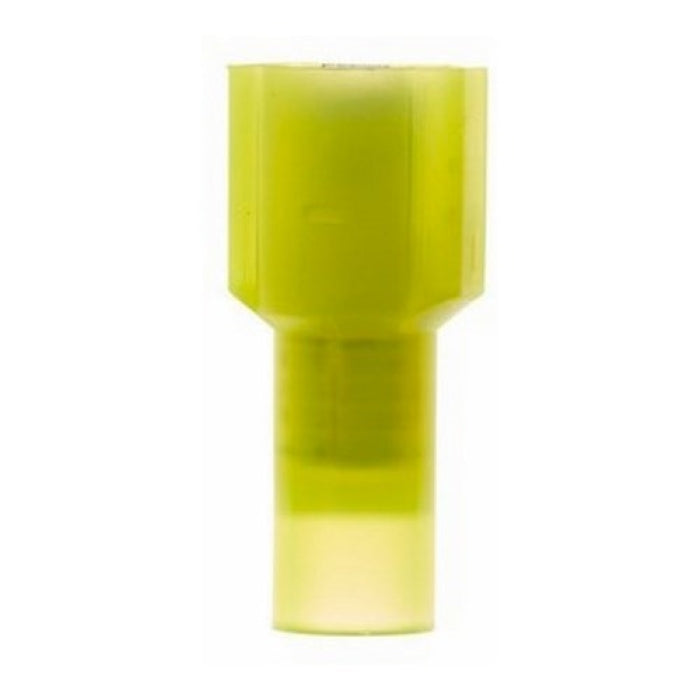

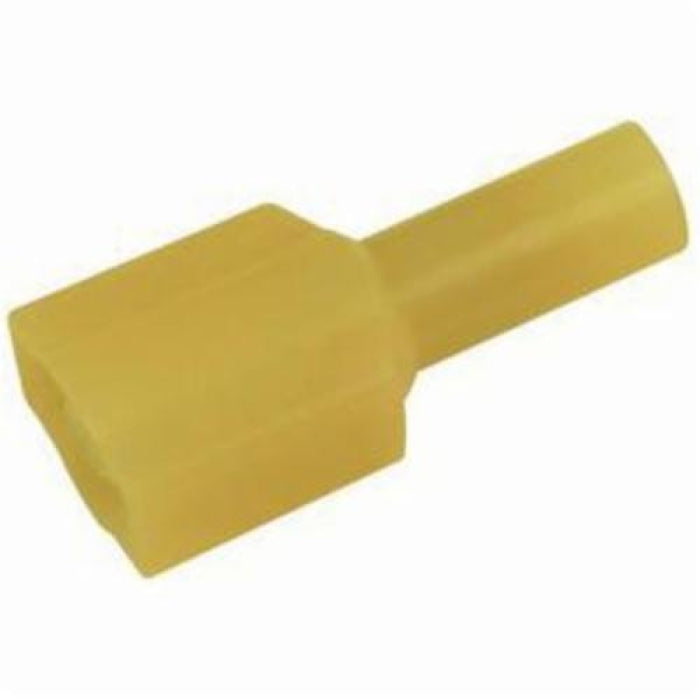

The Highland MTI10-250Q is a fully insulated male disconnect terminal designed for electrical connections. This terminal accommodates a conductor size ranging from twelve to ten AWG. It features a tab size of 0.032 by 0.25 inches and utilizes electrolytic copper for efficient conductivity. This product is ideal for applications requiring a reliable electrical connection in various wiring tasks.
- Fully insulated design for safety
- Suitable for 12 to 10 AWG conductors
- 0.032 x 0.25 inch tab size
Product Highlights
The Highland MTI10-250Q male disconnect terminal provides a secure connection with enhanced insulation. It is rated for 600 volts, making it suitable for significant electrical tasks. This terminal enables quick disconnection and features a butted barrel design for easy wire insertion.
Product Information
Standard Information
-
Brand: Highland
-
Manufacturer: 3M
Technical Specifications
-
Conductor Size: 12 to 10 AWG
-
Tab Size: 0.032 x 0.25 inches
-
Overall Length: 1.05 inches
-
Operating Temperature: -40 to 221 degrees Fahrenheit
-
Voltage Rating: 600 VAC
-
Material: Electrolytic Copper/Nylon
-
Insulation: Full Nylon
-
Plating: Tin Plated
