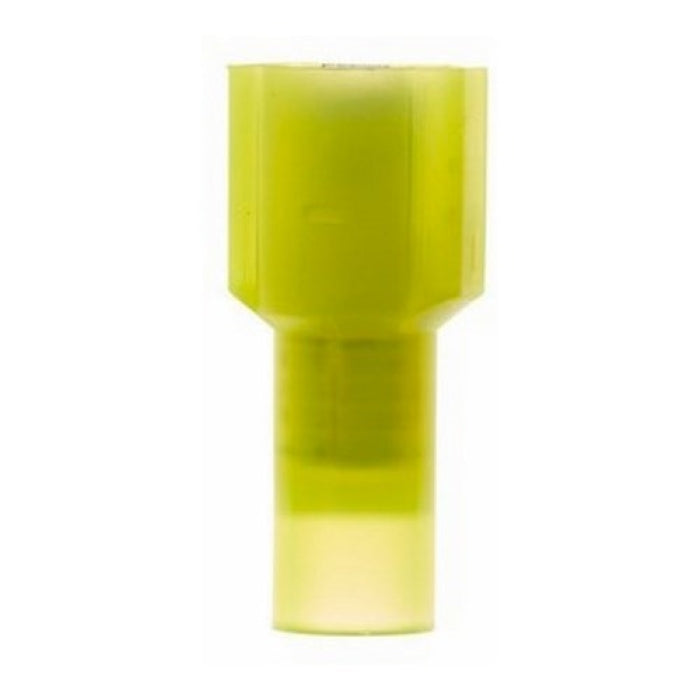

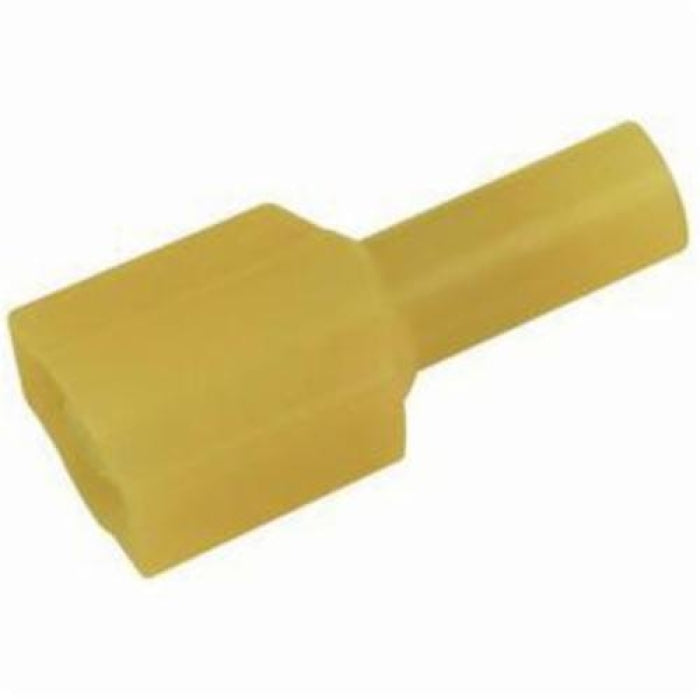

Highland MTI10-250Q Fully Insulated Male Disconnect Terminal 12 to 10 AWG

Product Description

The Highland MTI10-250Q is a fully insulated male disconnect terminal designed for connecting 12 to 10 AWG conductors. This terminal features a copper conductor with a tab size of zero point zero three two inches by zero point two five inches. The butted barrel design allows for efficient wire insertion. It is rated for six hundred volts in building wire applications and one thousand volts for signage and lighting.

• Nylon insulated for safety and durability
• Compatible with zero point two five inch female tabs
• Corrosion-resistant tin plating enhances conductivity

Product Highlights

The Highland MTI10-250Q offers quick and reliable wire connections. It is suitable for various electrical tasks including wiring tasks in buildings and fixtures. The terminal ensures a strong hold and is easy to use.

Product Information

Standard Information

• Brand: Highland
• Manufacturer: 3M

Technical Specifications

• MPN: MTI10-250Q
• Conductor Size: 12 to 10 AWG
• Tab Size: 0.032 x 0.25 inches
• Overall Length: 1.05 inches
• Temperature Range: -40 to 221 degrees Fahrenheit
• Material: Electrolytic copper/Nylon
• Voltage Rating: 600 VAC
• Insulation: Full nylon insulation
