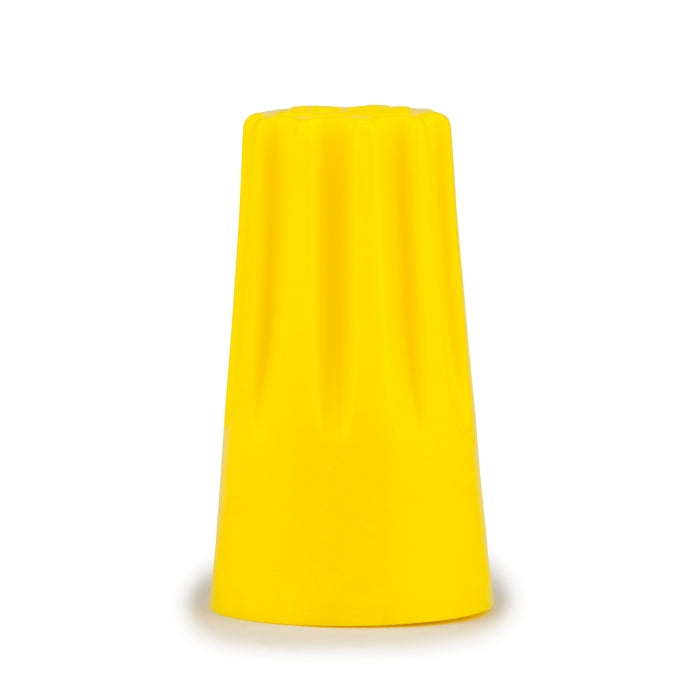

Highland H-33-POUCH Twist-On Wire Connector Fully Insulated 18 to 12 AWG 3M

Product Description

3M Highland H-33-POUCH is a twist-on wire connector designed for use with various wire types. The connector features a ribbed shell and is fully insulated for safety. It is compatible with aluminum, solid, and stranded copper wire in sizes ranging from eighteen to twelve American Wire Gauge (AWG). This connector can handle a voltage rating of six hundred volts alternating current (VAC) and operates effectively at temperatures up to two hundred twenty-one degrees Fahrenheit.

• Works with both solid and stranded copper wires
• Handles temperatures up to 221 degrees Fahrenheit
• UL Listed for reliable performance

Product Highlights

The Highland H-33-POUCH wire connector offers a simple solution for secure wire connections in various electrical applications.

Product Information

Standard Information

• Manufacturer: 3M
• Brand: Highland

Technical Specifications

• Type: Fully Insulated
• Voltage Rating: 600 VAC
• Temperature Rating: 221 degrees Fahrenheit
• Series: H-33
• Shell Style: Ribbed
• Material: Spring Steel
• Application: For connecting and insulating wire connections in a pigtail application
• Standards/Approvals: UL 486C, CSA C22.2 No. 188-MI983, RoHS Compliant
