Product Description

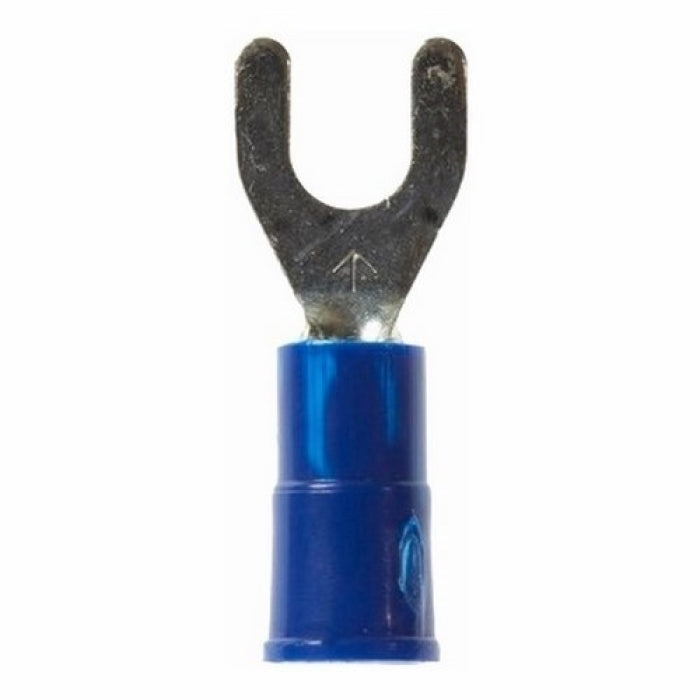

The Highland FV14-8Q is a standard insulated fork terminal made by 3M, suitable for stranded copper conductors sized 16 to 14 AWG. Its wider tongue design allows secure connections on free-standing studs. The terminal includes a butted seam barrel and is constructed from electrolytic copper with a blue vinyl insulation that withstands a temperature range from -40 to 221 degrees Fahrenheit.
- Suitable for conductors ranging from 16 to 14 AWG.
- Features a butted seam barrel for improved durability.
- Rated for 600 to 1000 VAC.
Product Highlights
This terminal features crimp terminations, ensuring reliable connections for electrical applications.
Product Information
Standard Information
-
Manufacturer: 3M
-
Part Number: FV14-8Q
Technical Specifications
-
Wire Size: 16-14 AWG
-
Length: 0.9 inches
-
Width: 0.34 inches
-
Thickness: 0.03 inches
-
Stud Size: #8
-
Voltage Rating: 600 to 1000 VAC
-
Color: Blue
