Product Description

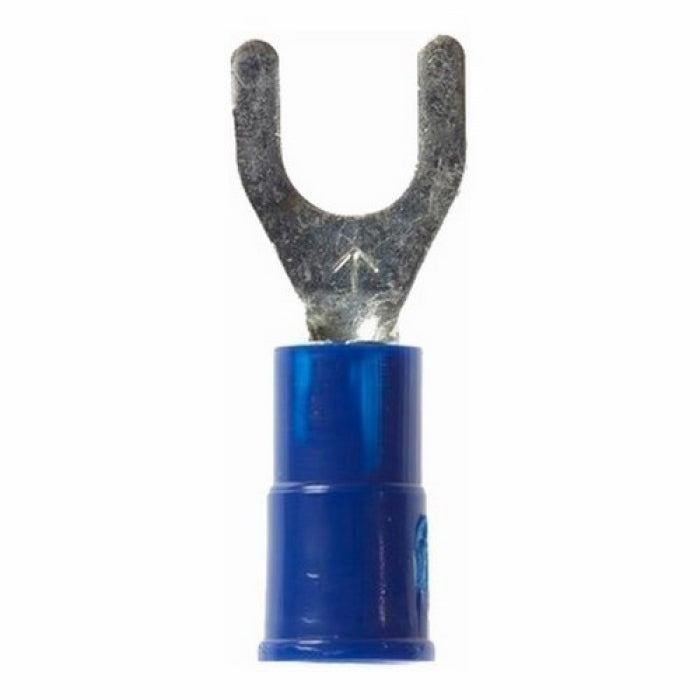

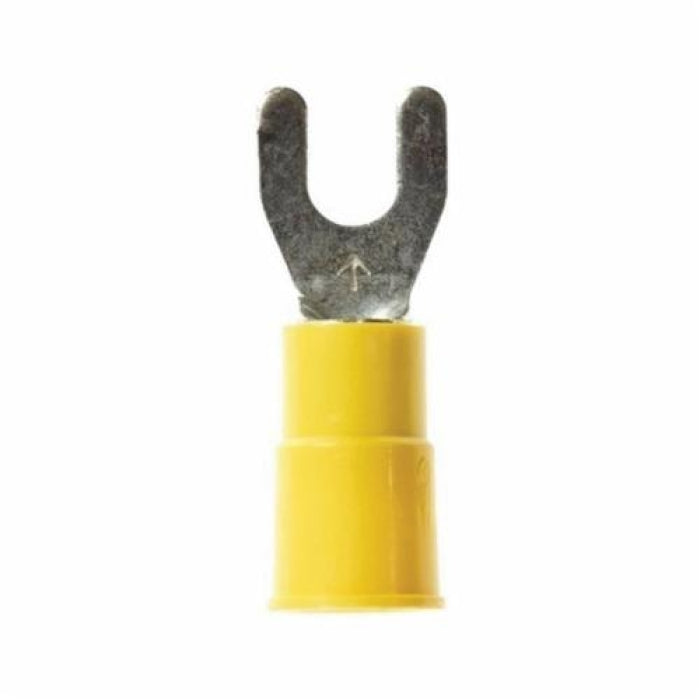

The Highland FV14-10Q is a standard fork terminal made by 3M. This insulated terminal is designed for stranded copper conductors with wire sizes ranging from sixteen to fourteen AWG.
- Accepts stud size of #10.
- Length of 0.9 inches with a butted seam barrel.
- Constructed from electrolytic copper with a durable vinyl insulation.
Product Highlights
This terminal supports rapid wire connections ideal for electrical applications.
Product Information
Standard Information
-
Manufacturer: 3M
-
Color: Blue
Technical Specifications
-
Wire Size: 16 to 14 AWG
-
Stud Size: #10
-
Insulation Material: Vinyl
-
Temperature Range: -40 to 221 degrees F
-
Barrel Length: 0.25 inches
-
Barrel Type: Butted
-
Voltage Rating: 600 to 1000 VAC
-
Maximum Insulation Diameter: 0.17 inches
