Product Description

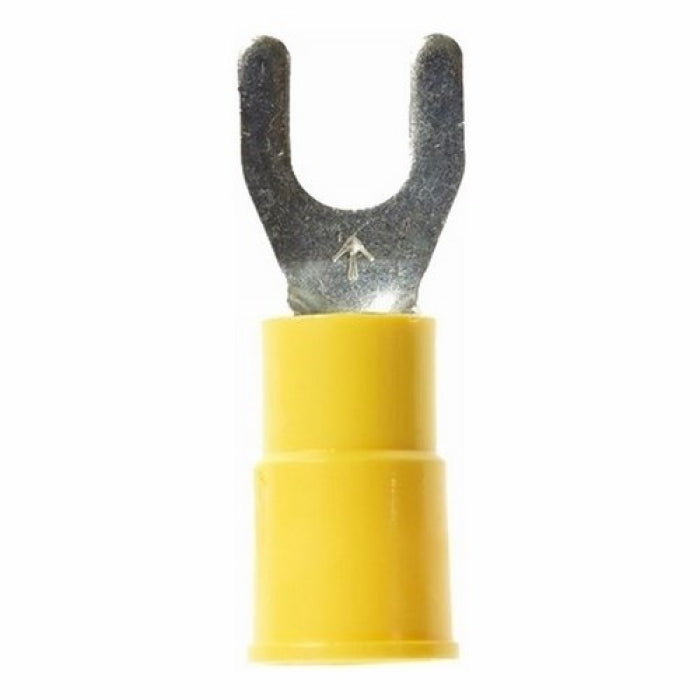

The Highland FV10-10Q is an insulated standard fork terminal from 3M, designed for use with twelve to ten AWG stranded copper conductors. It features a wider tongue for attachment to free-standing studs. This terminal ensures reliable connections across various electrical applications.
- Insulated design to enhance safety and performance
- Compatible with twelve to ten AWG conductors
- Features a butted seam barrel for secure fit
Product Highlights
This terminal is made of electrolytic copper with a tin-plated finish for good conductivity and corrosion resistance.
Product Information
Standard Information
-
Manufacturer: 3M
-
Manufacturer Part Number: FV10-10Q
Technical Specifications
-
Conductor Size: 12 to 10 AWG
-
Length: 1.03 inches
-
Stud Size: #10
-
Temperature Rating: -40 to 221 degrees Fahrenheit
-
Insulation Type: Vinyl
-
Voltage Rating: 600/1000 VAC
-
Approval: UL 486A, CSA C22.2
-
Packaging: 25 per bag
