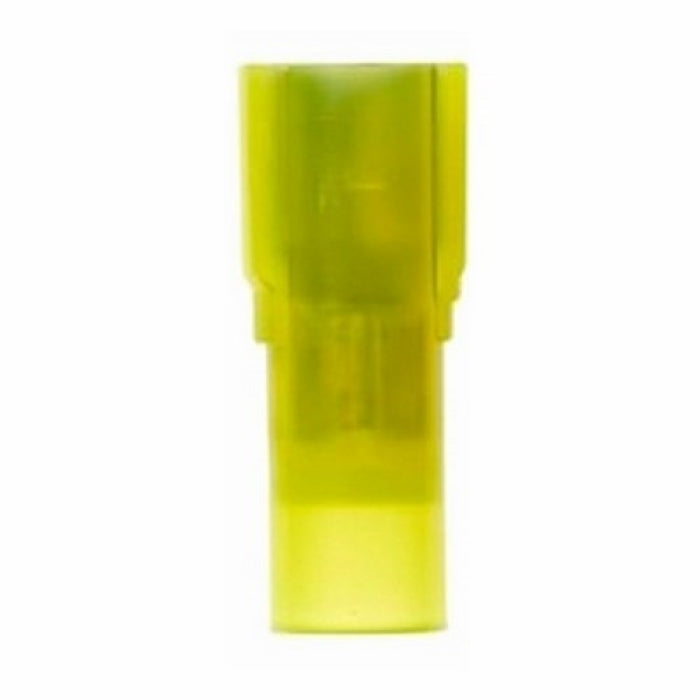

Highland FDI10-250Q Fully Insulated Female Disconnect Terminal 600/1000 VAC

Product Description

The Highland FDI10-250Q, manufactured by 3M, is a fully insulated female disconnect terminal designed for twelve to ten AWG conductors. It connects to the male tab, ensuring strong electrical contact through its butted seam barrel after crimping. The terminal features a nylon sleeve that is durable and maintains insulation, providing protection in various conditions.

• Designed for 12 to 10 AWG conductors.
• Voltage rated for 600/1000 VAC.
• Durable nylon insulation for reliability.

Product Highlights

This terminal allows for quick and easy disconnect while providing excellent holding force due to its designed edges and barrel.

Product Information

Standard Information

• Brand: Highland
• Manufacturer: 3M

Technical Specifications

• Conductor Size: 12 to 10 AWG
• Tab Size: 0.25 inches W x 0.032 inches THK
• Temperature Rating: -40 to 221 degrees F
• Barrel Type: Butted Seam
• Insulated: Fully Insulated
• Material: Nylon
• Finish: Tin Plated
• Voltage Rating: 600/1000 VAC
