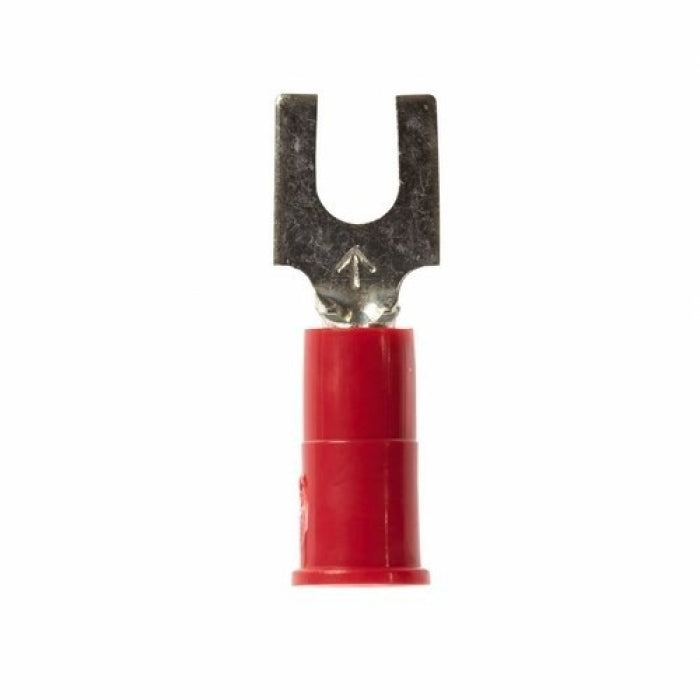

Highland BFV18-6Q Block Insulated Fork Terminal 22 to 18 AWG 25/BAG

Product Description

The Highland BFV18-6Q is a block insulated fork terminal by 3M. It is designed for use with conductors from twenty-two to eighteen American Wire Gauge (AWG). The terminal has a butted seam barrel and is suitable for various electrical applications.

• Color-coded for quick identification of wire size
• Funnel-designed sleeve for easy wire insertion
• Constructed from electrolytic copper for good conductivity

Product Highlights

This terminal features a durable vinyl insulation and is rated for high voltage applications.

Product Information

Standard Information

• Manufacturer: 3M
• Part Number: BFV18-6Q

Technical Specifications

• Conductor Size: 22 to 18 AWG
• Length: 0.85 inches
• Barrel Size: 0.07 inches ID x 0.25 inches L
• Tongue Size: 0.3 inches W x 0.03 inches THK
• Temperature Rating: -40 to 221 degrees F
• Stud Size: #6
• Voltage Rating: 600 to 1000 VAC
• Insulation Type: Vinyl Insulated
