Product Description

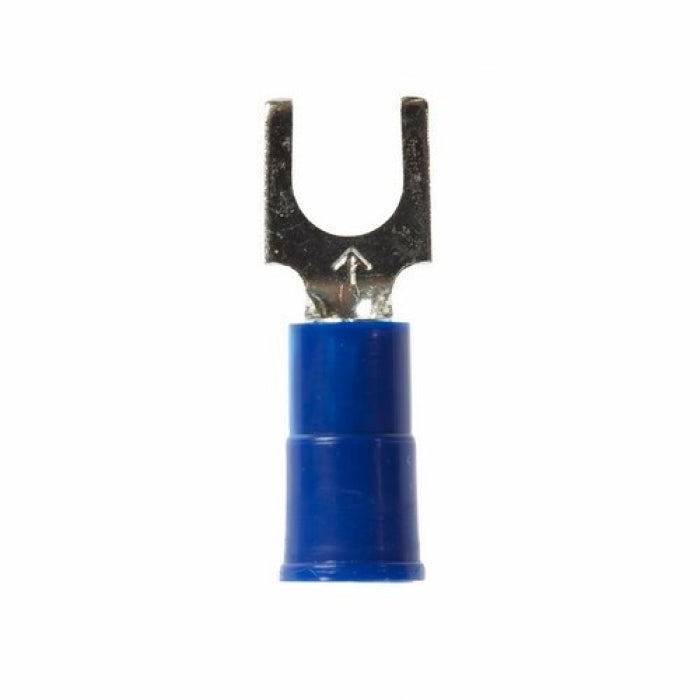

Highland BFV14-10Q is a block insulated fork terminal made by 3M. It is designed for use with stranded copper conductors, specifically for sizes sixteen to fourteen AWG. The terminal features a butted seam barrel and is equipped with a funnel designed PVC sleeve that supports easy wire insertion, offering reliable electrical connections.
- Rated for 600 to 1000 VAC
- Temperature range of negative forty to two hundred twenty-one degrees Fahrenheit
- Constructed from electrolytic copper and vinyl, making it corrosion-resistant
Product Highlights
This fork terminal is easy to identify due to its blue color coding, which indicates the appropriate wire size. It includes a flared vinyl sleeve for enhanced abrasion resistance, ensuring durability during use.
Product Information
Standard Information
-
Manufacturer: 3M
-
Stud Size: #10
Technical Specifications
-
Type: Block Insulated
-
Conductor Size: 16 to 14 AWG
-
Length: 0.85 in
-
Barrel Size: 0.09 in ID x 0.25 in L
-
Tongue Size: 0.3 in W x 0.03 in THK
-
Voltage Rating: 600 to 1000 VAC
-
Temperature Rating: -40 to 221 deg F
-
Standards: UL File No. E23438, CSA File No. LR22190
