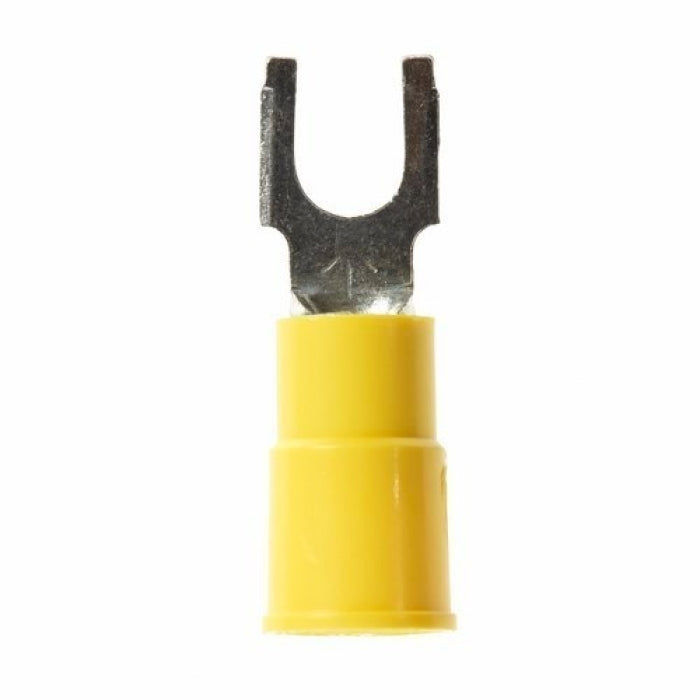

Highland BFV10-10Q Block Insulated Fork Terminal 12 to 10 AWG 25/BAG

Product Description

The Highland BFV10-10Q from 3M is a block insulated fork terminal designed for stranded copper conductors ranging from twelve to ten American Wire Gauge (AWG). This product features a length of one point zero three inches and utilizes a butted seam barrel for secure wire insertion.

• Color coded for easy identification of wire size
• Made from electrolytic copper with a vinyl insulation
• Rated for use at voltages between six hundred to one thousand VAC

Product Highlights

The Highland BFV10-10Q ensures reliable connections with its robust construction and easy insertion design.

Product Information

Standard Information

• Manufacturer: 3M
• Part Number: BFV10-10Q

Technical Specifications

• Conductor Size: 12 to 10 AWG
• Stud Size: #10
• Length: 1.03 inches
• Barrel Size: 0.135 inches ID x 0.25 inches L
• Tongue Size: 0.32 inches W x 0.135 inches THK
• Temperature Rating: -40 to 221 degrees Fahrenheit
• Voltage Rating: 600 to 1000 VAC
• Insulation Type: Vinyl insulated
• Color: Yellow
