Highland 7000133669 Male Disconnect Fully Insulated 22 to 18 AWG 1/4 in

Product Description

The Highland 7000133669 is a fully insulated male disconnect terminal designed for reliable connections in various electrical applications. This product is suitable for conductor sizes ranging from 22 to 18 AWG and features a 1/4 inch tab with a butted seam barrel design. Made from electrolytic copper and nylon, it provides strong electrical conductivity and durability.

• Compatible with 22 to 18 AWG conductors
• Voltage rating of 600/1000 VAC
• Temperature rating between -40 to 221 degrees Fahrenheit

Product Highlights

This male disconnect terminal enables quick and easy connections while ensuring excellent holding force.

Product Information

Standard Information

• Brand: Highland
• Manufacturer: 3M

Technical Specifications

• Conductor Type: Copper

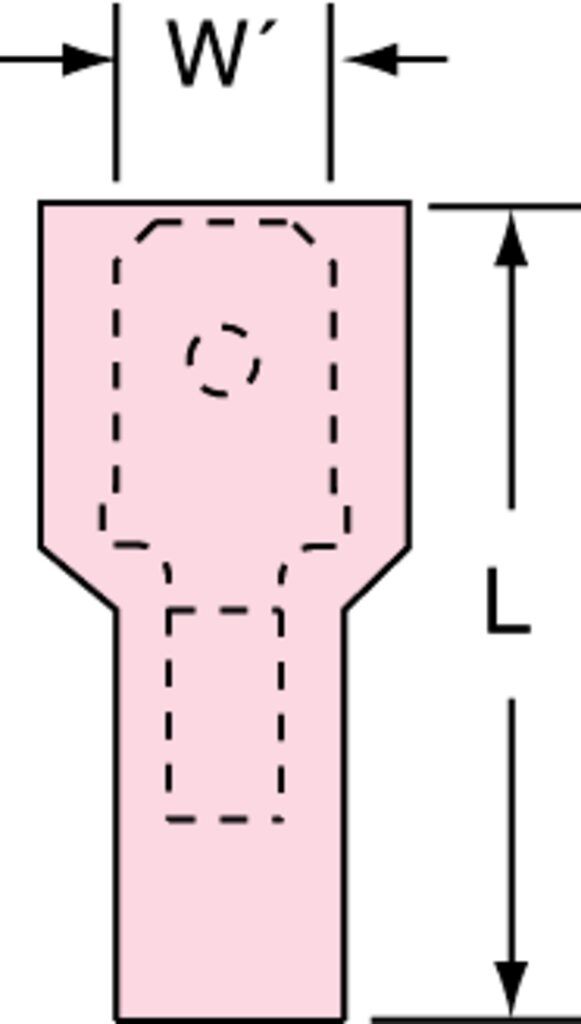

• Dimensions: 0.95 in L x 0.44 in W
• Finish: Tin Plated
• Thickness: 0.032 in
• Temperature Rating: -40 to 221 degrees F
• Terminal Type: Crimp
• Insulation Type: Fully Insulated
• Voltage Rating: 600/1000 VAC
• Conductor Size: 22 to 18 AWG
• Tab Size: 1/4 in
• Barrel Type: Butted Seam
• Material: Electrolytic Copper/Nylon
• Color: Red
