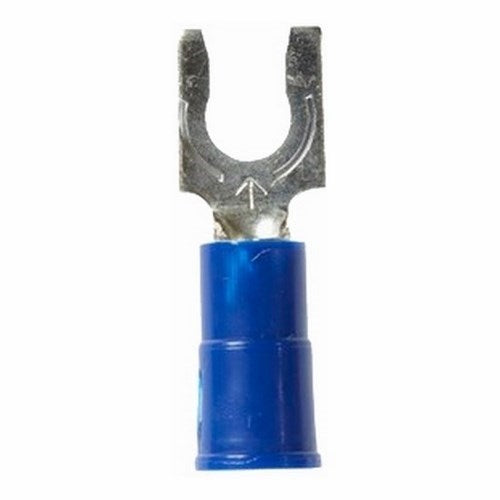

Highland 7000133666 Locking Fork Insulated 16 to 14 AWG Conductor #8 Stud

Product Description

The Highland 7000133666, manufactured by 3M, is a locking fork terminal designed for insulated wire connections. This terminal is compatible with sixteen to fourteen AWG conductors and features a length of 0.88 inches. It is equipped with a butted seam barrel, ensuring a secure fit. The barrel is made from electrolytic copper and covered with a vinyl insulation that offers protection and enhances the terminal's performance.

• Color coded for easy identification of wire sizes.
• Funnel-designed sleeve for guiding wire during crimping.
• Durable insulation suitable for temperature ranges from minus forty to two hundred twenty-one degrees Fahrenheit.

Product Highlights

This insulated locking fork terminal combines reliable functionality with easy wire insertion.

Product Information

Standard Information

• Brand: Highland
• Manufacturer: 3M

Technical Specifications

• Barrel Size: 0.09 inches ID x 0.25 inches L
• Conductor Type: Stranded Copper
• Finish: Tin Plated
• Voltage Rating: 600 to 1000 VAC
• Length: 0.88 inches
• Stud Size: #8
• Temperature Rating: -40 to 221 degrees Fahrenheit
• Material: Electrolytic Copper/Vinyl
• Color: Blue
