Highland 7000133664 Insulated Disconnect Terminal 600/1000 VAC 22 to 18 AWG

Product Description

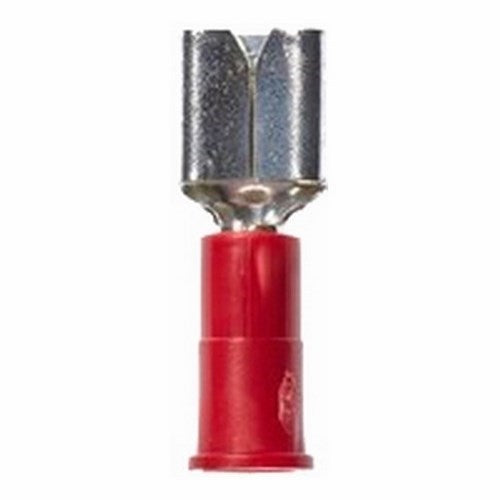

The Highland 7000133664 is a female disconnect terminal designed for use with conductors ranging from 22 to 18 AWG. This insulated terminal features a butted seam barrel and a durable vinyl sleeve that provides both electrical contact and mechanical support. Its design makes it easy to crimp and ensures secure connections.

• Suitable for conductors from 22 to 18 AWG
• Rated for voltages up to 600/1000 VAC
• Constructed with a corrosion-resistant tin-plating for reliability

Product Highlights

This terminal allows for straightforward wire attachment using a tongue that slips over the male tab. The vinyl insulation ensures abrasion resistance, while the rigid molded sleeve guides the wires into position, making installation efficient.

Product Information

Standard Information

• Brand: Highland
• Manufacturer: 3M

Technical Specifications

• Conductor Size: 22 to 18 AWG
• Tab Size: 0.25 in W x 0.032 in THK
• Voltage Rating: 600/1000 VAC
• Temperature Rating: -40 to 221 deg F
• Material: Vinyl
• Color: Red
• Dimensions: 0.87 in L
• Barrel Type: Butted Seam
