Highland 7000133653 Block Fork Insulated 22 to 18 AWG Conductor #8 Stud

Product Description

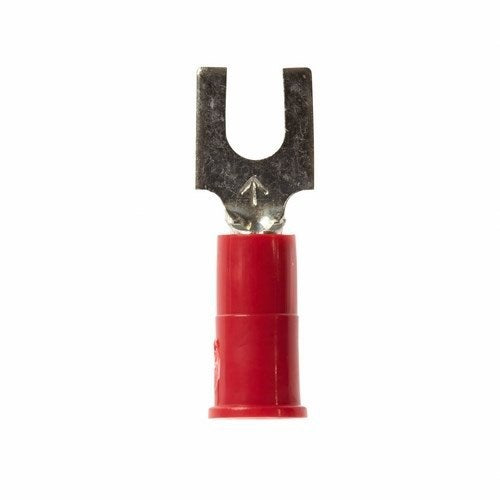

The Highland 7000133653 Block Fork Terminal by 3M is designed for reliable electrical connections. This terminal is used with 22 to 18 AWG conductors. It features a butted seam barrel that is insulated to enhance safety and performance. The terminal’s sleeve is made from rigid molded polyvinyl chloride that eases wire insertion and supports electrical contacts. This design also provides mechanical stress relief to ensure long-lasting connections.

• Suitable for 22 to 18 AWG conductors
• Compatible with #8 stud sizes
• Operates within the voltage ranges of 600 to 1000 VAC

Product Highlights

This terminal is color coded for fast identification of the wire size. The insulation is abrasion-resistant and facilitates easy crimping. The overall design supports secure attachment and reliable performance for various wiring applications.

Product Information

Standard Information

• Brand: Highland
• Manufacturer: 3M

Technical Specifications

• Type: Block Insulated
• Color: Red
• Material: Electrolytic Copper/Vinyl
• Length: 0.85 inches
• Stud Size: #8
• Voltage Rating: 600 to 1000 VAC
• Temperature Rating: -40 to 221 degrees F
• Conductor Size: 22 to 18 AWG
• Insulation Diameter: 0.145 inches Max
• Clearance: 1/4 inch
• Barrel Size: 0.07 inches ID x 0.25 inches L
• Tongue Size: 0.3 inches W x 0.03 inches THK
• Barrel Type: Butted Seam
• Tongue Type: Fork
• Finish: Tin Plated
