Resideo L8148A1017 AQUA.RELAY/HI-LIMIT 140-240F

Product Description

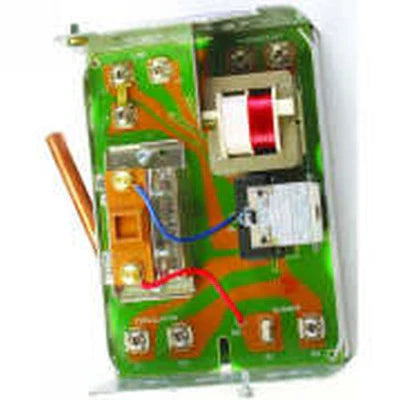

The Resideo AQUA.RELAY/HI-LIMIT Water Valve (L8148A1017) regulates temperature in HVAC systems. It operates within a temperature range of one hundred forty to two hundred forty degrees Fahrenheit, ensuring effective control. Made from durable components, this valve is designed for both reliability and safety in demanding environments. The compact structure allows for simple installation within various system setups.

• Temperature range: 140°F to 240°F
• Compact design for easy installation
• Durable construction for industrial use

Product Highlights

Enhance your HVAC system's performance with the reliable Resideo AQUA.RELAY/HI-LIMIT Water Valve. It is crucial for maintaining optimal conditions in heating applications.

Product Information

Standard Information

• Brand: Resideo
• MPN: L8148A1017

Technical Specifications

• Item Number: L8148A1017
• Operating Temperature Range: 140°F to 240°F
• Differential: Fixed, 8°F
• Mounting Orientation: Horizontal
• Electrical Rating: Circulator: 7.4 A @ 120 Vac, Burner: 7.4 A @ 120 Vac
• Max Pressure: 255 PSI (Immersion Well)
• Capillary Length: 4.5 inches
• Weight: 3.1 pounds
