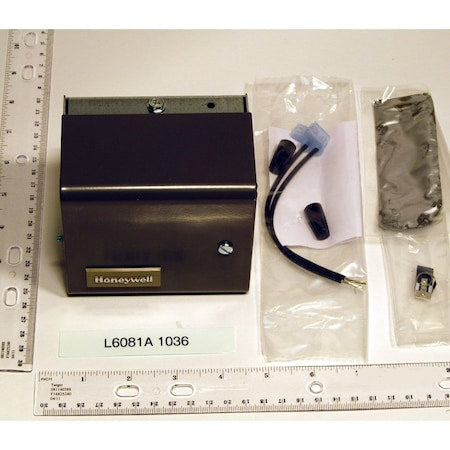

Honeywell L6081A1036 High And Low Limit Aquastat Controller 3/4-14 NPT

Product Description

The Honeywell L6081A1036 High and Low Limit Aquastat Controller is designed for controlling boiler water temperature in hydronic heating systems. This controller features an immersion type liquid-filled sensing element that actuates two independent snap switches. The high limit control and low limit/circulator control functions are managed separately for optimized system performance.

• An immersion type liquid-filled sensing element actuates two snap switches.
• One SPST and one SPDT snap switches act independently at respective temperature settings.
• Controller may be mounted in any position and requires no leveling.

Product Highlights

This Honeywell Aquastat Controller maintains precise water temperature regulation for boilers in gas or oil-fired hydronic heating systems. It utilizes easy-to-read calibrated dials for each switch and offers push-in terminals for swift connections. Installation is straightforward with a single sensing element and accessible internal adjustments.

Product Information

Standard Information

• Brand: Honeywell
• MPN: L6081A1036

Technical Specifications

• Type: High and Low Limit
• Series: L6081A
• Spud Size: 3/4-14 NPT
• Dimensions: 3-7/8 Inch H x 4-1/8 Inch W x 2-3/4 Inch D
• Switch Type: Snap-Action
• Differential: 10 F Fixed High Limit, 10-25 F Adjustable Low Limit
• Mounting Type: Horizontal
• Switch Action: SPST, SPDT
• Insulation Depth: 1-1/2 - 4 Inch
• Temperature Range: 130 - 240 F High Limit, 110 - 220 F Low Limit
• Country of Origin: United States
