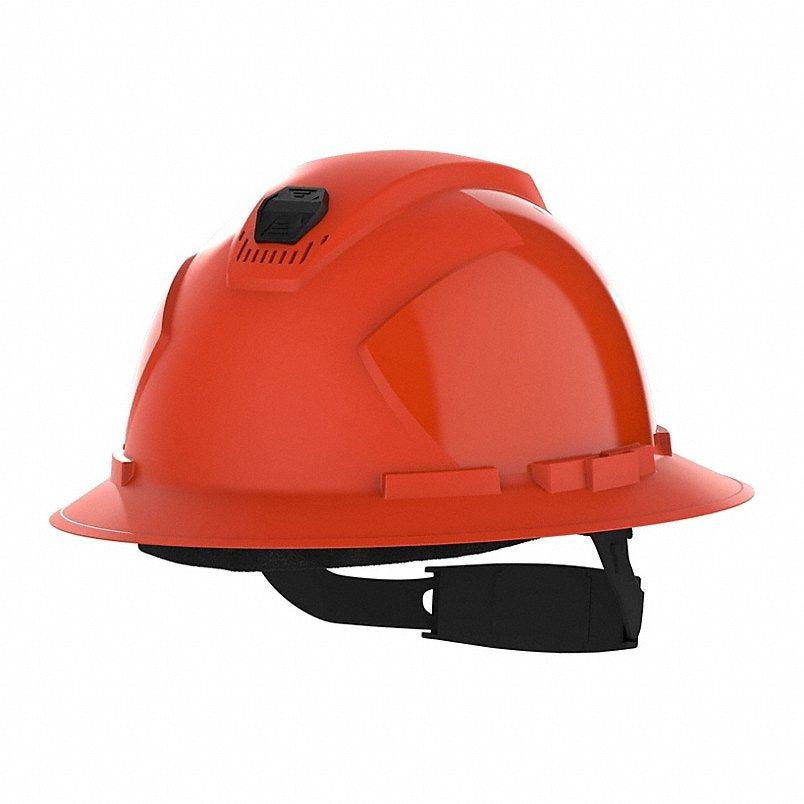

Hexarmor 16-22005 Full Brim Hard Hat Type 1 Class C Orange

Product Description

The HEXARMOR 16-22005 is a full brim, Type 1 hard hat from the XP300 series, designed for general industrial head protection. It meets ANSI Z89.1 Type 1 requirements, guarding against vertical impact and penetration hazards. The full brim extends around the entire hat, helping to shield the face and neck from sun glare and shed water during outdoor work. The ABS shell pairs with a textile impact-absorbing liner and a 4-point ratchet suspension for a secure, adjustable fit across a wide range of head sizes. Adjustable airflow vents allow the wearer to manage comfort in varying work environments. This hat is installed and worn by industrial workers across construction, manufacturing, and site maintenance applications.

The HEXARMOR 16-22005 is suited for industrial job sites where ANSI Z89.1 Type 1 compliance is required. The Class C electrical rating means it provides no dielectric protection, making it appropriate for environments without overhead electrical hazards. The orange solid-color shell offers standard visibility without a high-visibility rating. Side-slot accessory mounting allows compatible face shields, ear muffs, and other accessories to be attached. Compatible replacement suspension is the HexArmor 17-19006. Hat size range covers 6-3/8 to 8, fitting one size with ratchet adjustment.

Key Features

• ANSI Z89.1 Type 1 certified for vertical impact and penetration protection
• Full brim design shields face and neck from sun, glare, and water runoff
• 4-point ratchet suspension adjusts to fit hat sizes 6-3/8 through 8
• Adjustable airflow vents for thermal comfort management on the job
• Side-slot mounting points accept compatible face shields and hearing protection accessories
• ABS shell with textile impact-absorbing liner for durable, lightweight protection

Compatibility

Compatible replacement suspension: HexArmor part number 17-19006. Designed for use with HexArmor-compatible suspension accessories. Accessory mounting via integrated side-slots accepts standard side-slot compatible attachments.

Installation Notes

Hard hat fitting and suspension adjustment should be performed before each use to ensure proper head size and secure fit. Inspect the shell and suspension for cracks, dents, or fraying before donning. Replace the hard hat after any impact event or if the shell shows signs of degradation. Follow applicable OSHA and ANSI Z89.1 guidelines for head protection selection and use on the job site.

Technical Specifications

• Hard Hat Series: XP300
• ANSI Impact Type: Type 1
• ANSI Electrical Class: Class C
• Head Protection Style: Full Brim
• Color: Orange
• Vented: Yes
• Suspension Type: 4-Point Ratchet
• Hat Size Range: 6-3/8 to 8
• Shell Material: ABS
• Impact Absorbing Material: Textile
• Accessory Mounting: Side-Slots
• Dielectric: No
• High-Visibility: No
• Chin Strap Included: No
• Standards: ANSI Z89.1 Type 1
• Weight: 0.94 pounds
• Country of Origin: USA (subject to change)

Standard Information

• Brand: HEXARMOR
• Manufacturer Part Number: 16-22005
