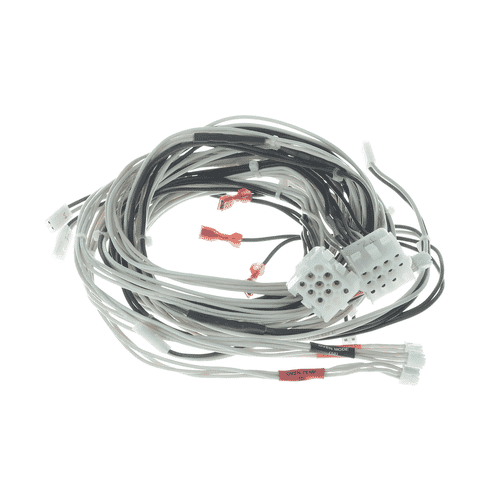

Hestan 24515 Wire Harness Oven to Rangetop 48 Inch Range

Product Description

The HESTAN 24515 is a factory wire harness designed to connect the oven section to the rangetop section in select 48 inch Hestan ranges. This harness carries low-voltage control signals and power between the two cooking zones, maintaining the electrical continuity required for integrated range operation. It is rated VW-1 and FT1, meeting standard flame and heat resistance requirements for appliance wiring. Installation is performed by qualified appliance service technicians during range assembly, disassembly, or component replacement. The harness is a direct OEM service part and is sized specifically for the 48 inch platform.

This wire harness is intended for use in 48 inch Hestan professional ranges where the oven and rangetop assemblies require a dedicated interconnect cable. It is a service-level part, typically replaced during oven control board service, rangetop module replacement, or after harness damage from heat exposure or physical wear. Compatible model numbers are listed in the compatibility section below.

Key Features

• OEM wire harness rated VW-1 and FT1 for flame and heat resistance
• Engineered specifically for 48 inch Hestan range platforms
• Connects oven section to rangetop section for integrated electrical operation
• Direct factory replacement part — no modification required
• Service-grade construction for long-term reliability in high-heat appliance environments

Compatibility

Compatible with the following Hestan range models: KRD484GD-SERVICE, KRD485GD-SERVICE, KRG484GD-SERVICE, KRG485GD-SERVICE.

Installation Notes

Installation should be performed by a qualified appliance service technician. Disconnect power to the range at the circuit breaker before accessing any internal wiring or removing panels. Route the harness away from open flames, burner tubes, and high-heat surfaces, and secure all connectors fully before restoring power. Refer to the Hestan service documentation for this range model when routing or reconnecting the harness.

Technical Specifications

• Wire Rating: VW-1 / FT1
• Application: Oven to rangetop interconnect, 48 inch range

Standard Information

• Brand: HESTAN
• Manufacturer Part Number: 24515
