Hestan 2321 Elbow Adapter 1/4 Npt Female X 3/8 Cc

Product Description

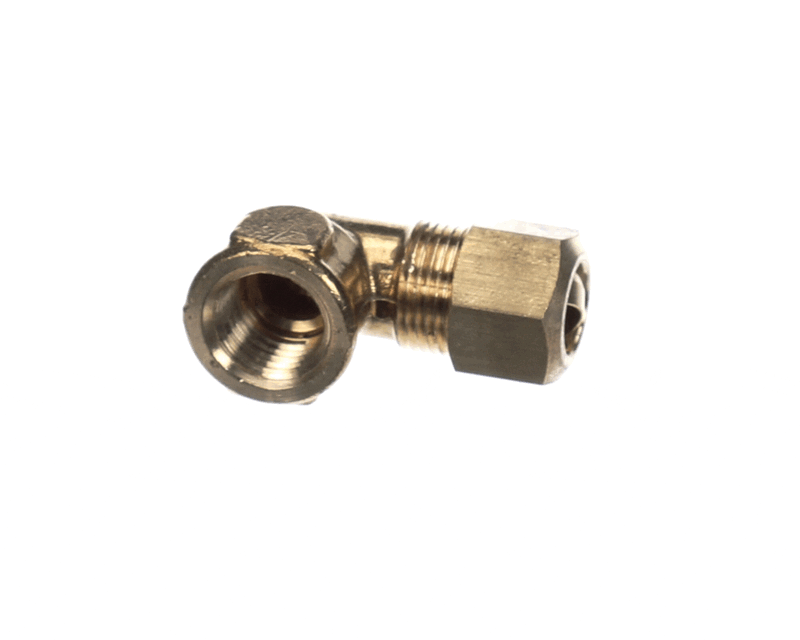

The HESTAN 2321 is a 90-degree elbow adapter fitting designed to transition between a 1/4-inch NPT female thread and a 3/8-inch compression (CC) connection. This fitting is used in gas or fluid delivery lines within commercial cooking and foodservice equipment. Plumbers and commercial kitchen technicians install this part when routing tubing in tight spaces where a straight coupling is not practical. The compact 1-inch profile on all sides keeps the fitting low-profile and suited to confined equipment interiors.

This adapter is intended for use in commercial foodservice equipment applications, particularly where a directional change in a supply line is required. It bridges a standard NPT threaded port to a compression-style tube connection, making it a common service part in commercial range, grill, or similar Hestan commercial equipment where gas or liquid lines require a 90-degree turn at the connection point.

Key Features

• 90-degree elbow configuration allows directional routing in confined equipment cavities
• 1/4-inch NPT female thread on one end for direct port connection
• 3/8-inch compression (CC) connection on the opposite end for tubing attachment
• Compact 1-inch x 1-inch x 1-inch body fits tight installation spaces
• OEM part number ensures direct fitment for Hestan commercial equipment service

Compatibility

Designed as an OEM-style replacement fitting for Hestan commercial foodservice equipment requiring a 1/4-inch NPT female to 3/8-inch compression elbow adapter connection.

Installation Notes

Installation should be performed by a licensed plumber or qualified commercial kitchen equipment technician. Shut off the gas or fluid supply and relieve line pressure completely before removing or installing any fittings. Apply thread sealant appropriate for the service medium to the NPT threads and tighten to hand-snug plus the manufacturer-recommended turns per applicable code. Inspect the compression connection and tubing end for burrs or damage before seating to ensure a leak-free seal.

Technical Specifications

• Connection End 1: 1/4 inch NPT Female
• Connection End 2: 3/8 inch CC (Compression)
• Configuration: 90-Degree Elbow
• Length: 1 inch
• Width: 1 inch
• Height: 1 inch

Standard Information

• Brand: HESTAN
• Manufacturer Part Number: 2321
