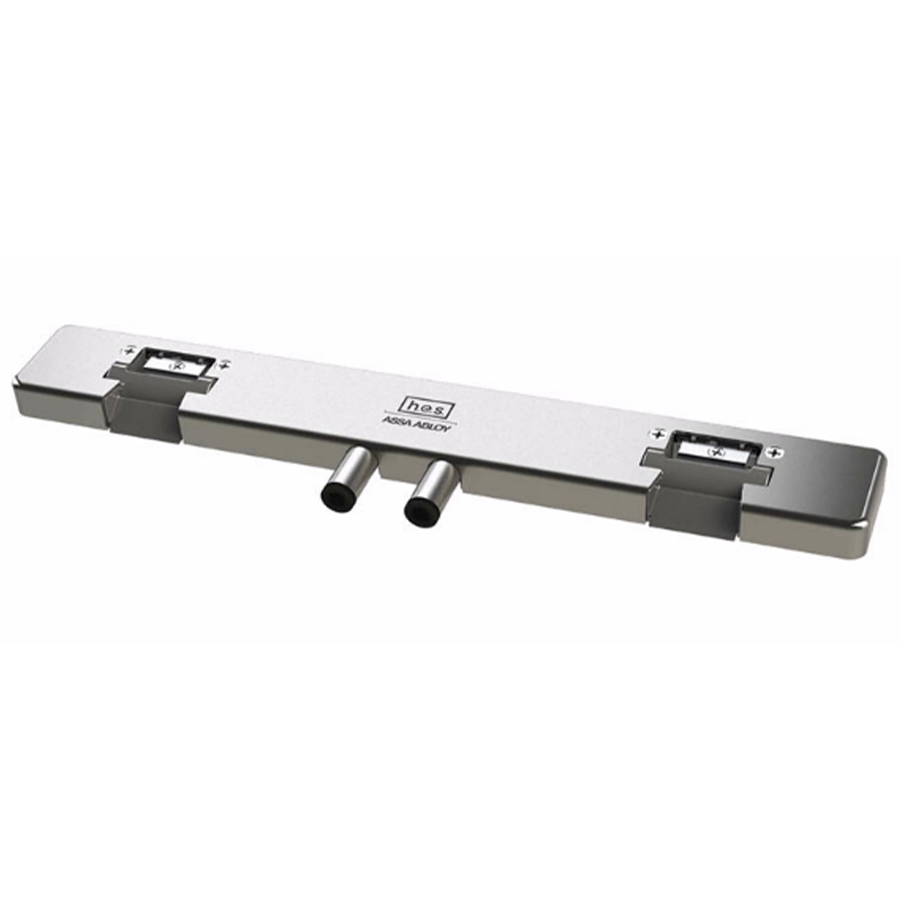

HES 9200W-630-LMS SVR Surface Mounted Electric Strike 12/24VDC 8-3/8inch

Product Description

The HES 9200W-630-LMS is a surface mounted electric strike designed for tubular and vertical rod exit devices on double door glass openings. It operates on twelve or twenty-four VDC and comes with features for both fail safe and secure operation. With a keeper spacing of eight and three-eighths inches, it is suitable for high-traffic entrances.

• Surface mounted design for easy installation
• Field selectable for fail safe or secure operation
• Compatible with tubular, vertical rod exit devices

Product Highlights

Perfect for use on double glass doors, the electric strike provides reliable access control and monitoring with latchbolt and strike monitoring capabilities.

Product Information

Standard Information

• Voltage: 12-24 VDC
• Mounting Type: Surface on aluminum, hollow metal, or wood frame

Technical Specifications

• Grade: ANSI/BHMA Grade 1
• Function: Electric strike for glass doors
• Finish: Satin stainless steel
• Holding Force: 1,500 lbs
• Product Height: 1-7/8 inches
• Product Length: 13 inches
• Duty: Field selectable fail safe or secure
• Standards: ANSI/BHMA A156.31, Grade 1, RoHS compliant
• Dynamic Strength: 70 foot-lbs
• Product Type: Electric strike
