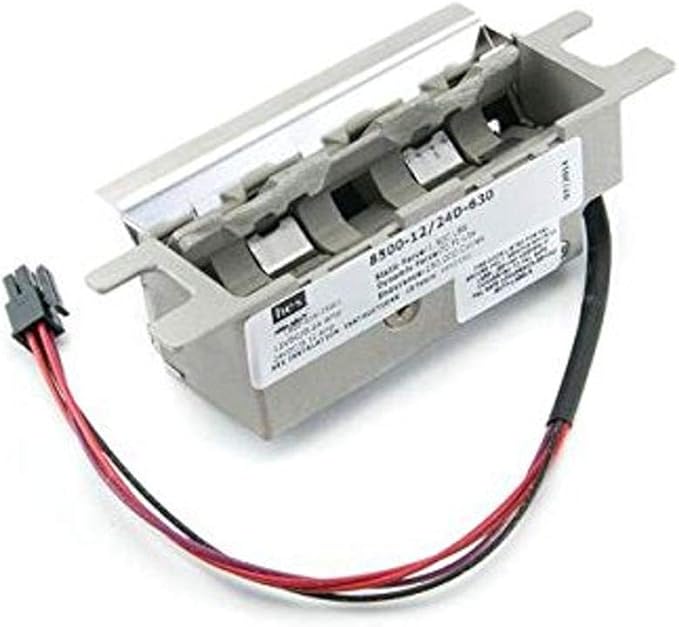

HES 8500-12/24D-630 Electric Strike Body 12/24V DC

Product Description

The HES 8500-12/24D-630 is a concealed electric strike designed for mortise locksets. This electric strike operates at 12/24 Volt DC, making it versatile for various applications. It offers fast installation and requires minimal frame modifications, ensuring a smooth setup process.

• Compatible with mortise locksets
• Fire-rated and compact design
• Static strength of 1,500 lbs and dynamic strength of 70 ft-lbs

Product Highlights

The HES 8500 series strikes are built to last, featuring tamper resistance and easy adjustments. This product is suitable for both wood and hollow metal frames.

Product Information

Standard Information

• Manufacturer: Hanchett Entry Systems, Inc.
• Part Number: 8500630

Technical Specifications

• Item model number: 8500630
• Voltage: 24 Volts
• Item Package Quantity: 1
• Included Components: 1
• Batteries Included?: No
• Batteries Required?: No
• ANSI Grade: Grade 1
• Frame Material: Wood or Hollow Metal
• Locking State: Selectable FS or FSE
• Max Latch Length: Maximum 3/4 inch throw
• Product Type: For use with Mortise Lock
• Mounting: For centerline installations
• Pull Strength: 1000 - 1500 lbs.
• Sales Category: Electric Strike
• Switches: Latchbolt monitor
• UL Certification: UL 3-hour fire and burglary resistance
• Voltage and Duty: Selectable 12/24V DC
• Warranty: 5 year limited
