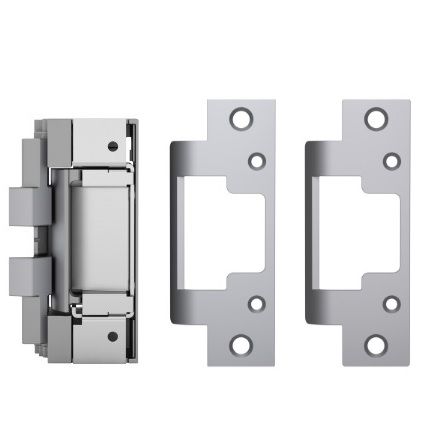

HES 8000C-630 Cylindrical Lock Electric Strike Complete w/ 801 & 801A Faceplates

Product Description

The HES 8000C-630 is an electric strike kit designed for cylindrical locksets with a latchbolt throw of up to five-eighths of an inch. This electric strike features a concealed design that enhances aesthetics and offers vertical adjustability for easy installation. It comes with both 801 and 801A faceplates, making it versatile for various applications. This product is compatible with hollow metal, concrete-filled metal, aluminum, and wood doors.

• Tamper-resistant construction
• Internally mounted solenoid
• Endurance rated for 1 million cycles

Product Highlights

The HES 8000C-630 electric strike is ideal for those needing a reliable locking solution in various door types.

Product Information

Standard Information

• Manufacturer: HES INC
• Part Number: 8000C-630

Technical Specifications

• Item Model Number: 8000C-630
• Item Package Quantity: 1
• Batteries Included: No
• Batteries Required: No
• Available Finish: Satin stainless steel (630)
• Material: Heavy duty stainless steel
• Depth: 1-1/16 inches (27 mm)
• Width: 1-7/16 inches (36.5 mm)
• Height: 4-7/8 inches (123.4 mm)
• Shim Height: 3-3/8 inches (85.7 mm)
• Distance between Mounting Holes: 4-1/8 inches (104.8 mm)
• Strength (Static): 1,500 lbs.
• Strength (Dynamic): 70 ft-lbs.
• Handing: Non-handed
• Frame Application: For hollow metal, concrete-filled metal, aluminum, and wood doors.
• Operating Mode: Fail Secure and Fail Safe modes available.
• Electrical (DC Continuous Duty): Dual voltage 12/24 VDC/VAC with power requirements listed.
