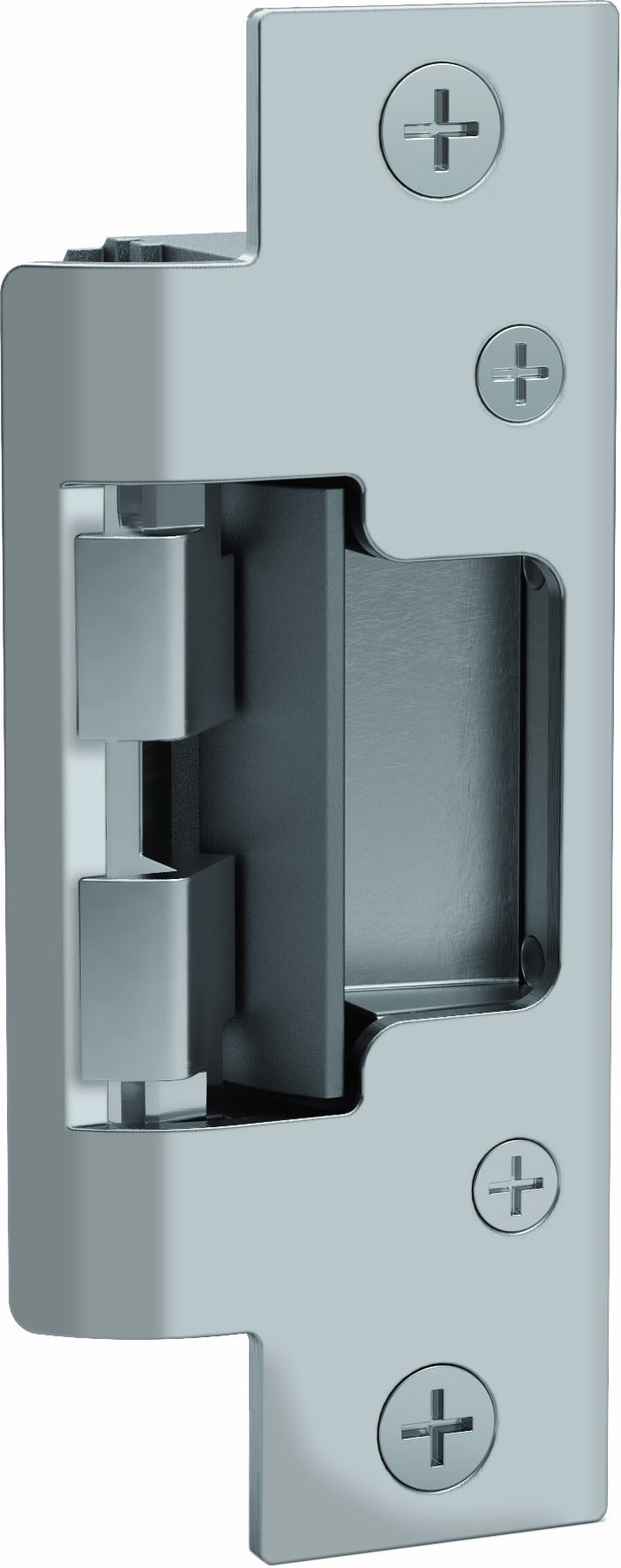

Hes 8000630 Electric Strike Body Satin Stainless Steel

Product Description

The HES 8000630 is an electric strike body finished in satin stainless steel, designed for use in electro-mechanical access control locking systems. Operating on either 12VDC or 24VDC, this strike body provides flexible integration into a wide range of access control panels and power supplies. At 0.9 pounds and measuring 10.5 inches in length, 3.3 inches in width, and 2.2 inches in height, it is sized for standard commercial door frame applications. Licensed access control installers and commercial locksmiths are the primary trades who specify and install this component.

This electric strike body is suited for commercial and light industrial access control installations where an electric strike mechanism is required in a door frame. The satin stainless steel finish provides corrosion resistance appropriate for interior doors in high-traffic environments such as office buildings, government facilities, and multi-tenant properties. The dual-voltage input of 12VDC or 24VDC allows the installer to match the strike to existing panel output without additional transformers or converters.

Key Features

• Dual voltage operation: 12VDC or 24VDC for flexible panel compatibility
• Satin stainless steel finish for durability and clean appearance in commercial environments
• Compact form factor: 10.5 inches long, 3.3 inches wide, 2.2 inches tall
• Lightweight at 0.9 pounds for straightforward door frame integration
• Sold as a single unit for direct replacement or new installation use

Compatibility

Designed as an OEM-style replacement or new-installation electric strike body for commercial access control door hardware systems requiring a 12VDC or 24VDC electric strike.

Installation Notes

Installation should be performed by a licensed access control technician or commercial locksmith familiar with low-voltage door hardware. Disconnect power to the access control panel before wiring or mounting the strike body. Verify that the door frame mortise or surface preparation matches the strike body dimensions before final installation. Follow all applicable local building and fire codes governing electrified door hardware.
