HES 7501-630 HES 7501 Grade 1 Fire Rated Electric Strike

Product Description

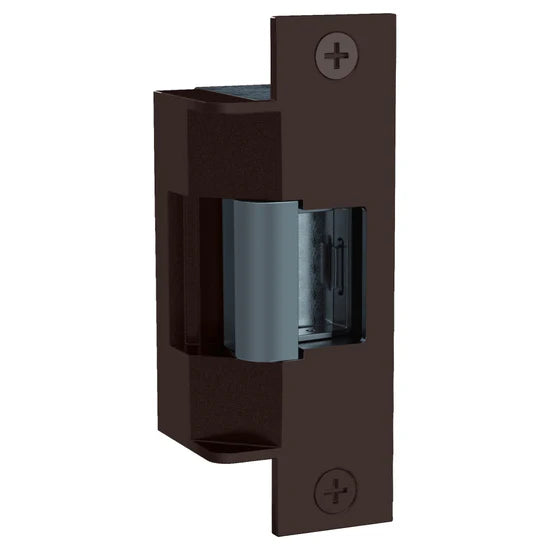

The HES 7501-630 is an electric strike designed for fire-rated applications with pre-load conditions. Its solid stainless steel construction ensures durability and strength, making it suitable for latchbolts with a throw of up to three-quarters of an inch. This electric strike features selectable fail safe or fail secure options, effectively accommodating pre-load situations.

• Heavy duty stainless steel design
• Field selectable fail safe or fail secure
• Accommodates pre-load situations with fail secure

Product Highlights

Engineered for demanding security needs, this device is ideal for applications requiring reliability under pre-load conditions.

Product Information

Standard Information

• Brand: HES
• MPN: 7501-630

Technical Specifications

• Fire-rated: UL 10C, 3-hour (fail secure only)
• Standards: ANSI/BHMA A156.31 Grade 1
• Electrical Power: 0.45 Amps at 12 VDC continuous duty
• Electrical Power: 0.25 Amps at 24 VDC continuous duty
• Application: Suitable for metal and wood frames
• Dynamic Strength: 70 ft-lbs
