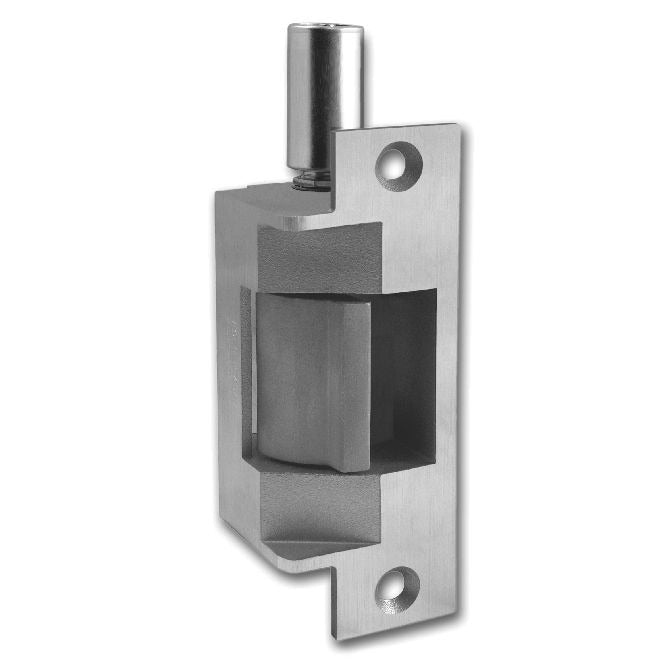

Hes 7127524D630 Electric Strike 24VDC Satin Stainless Steel

Product Description

The HES 7127524D630 is a 24-volt DC electric strike designed for use in electro-mechanical access control applications. Electric strikes replace the fixed strike plate on a door frame, allowing the latch or bolt to release remotely when a valid credential is presented to the access control system. This unit is finished in satin stainless steel, providing corrosion resistance suitable for interior and select exterior applications. It is installed by licensed locksmiths, access control technicians, and security integrators working on commercial door hardware. Key operating voltage is 24 volts DC, making it compatible with the majority of modern access control power supplies.

The 7127524D630 is suited for commercial and light-industrial access control installations where remote electric latch retraction is required. Typical applications include office entry doors, interior security doors, and vestibule access points that use a mortise latch or cylindrical lockset. The satin stainless steel finish integrates cleanly with commercial door hardware and frame aesthetics across a range of building types.

Key Features

• 24-volt DC operation compatible with standard access control power supplies
• Satin stainless steel finish for durability and corrosion resistance
• Replaces fixed strike plate for remote release capability
• Compact profile: 8 inches length, 6.25 inches width, 2.5 inches height
• Sold individually as a single unit

Compatibility

Designed as an OEM-style replacement or new-installation electric strike for commercial access control systems requiring a 24-volt DC electric strike in a standard door frame application.

Installation Notes

Installation should be performed by a qualified locksmith or access control technician familiar with door hardware and low-voltage wiring. Disconnect power to the access control system and any associated power supply before beginning installation. Verify that the door frame prep matches the strike dimensions and that the latch projection aligns correctly with the keeper before securing the unit. Local building and fire codes may govern electric strike use on egress doors — confirm compliance before installation.
