HES 7000C-630 Series 7000 Complete Pac Electric Strike Kit 12/24 VDC/VAC

Product Description

The HES 7000C-630 Series 7000 Complete Pac electric strike kit is built for pre-loaded doors and supports cylindrical latchbolts with a throw of up to five-eighths inches and rim exit devices with a throw of up to three-quarters inches. It offers in-frame horizontal adjustability and includes a 7000 strike body with 791 and 792 faceplates. This electric strike is made from stainless steel and designed to be tamper resistant.

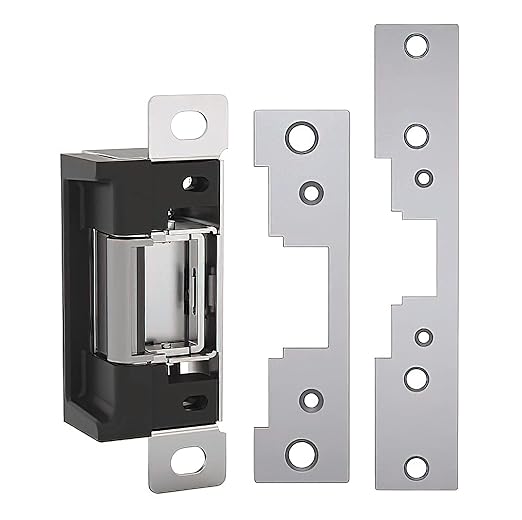

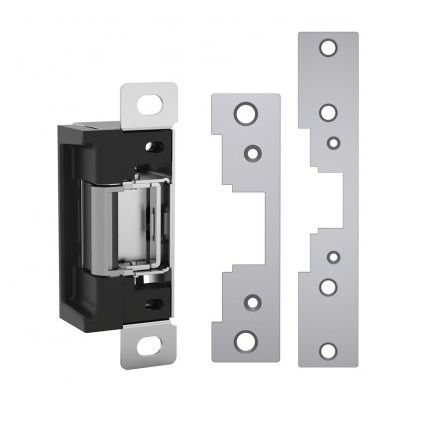

• Includes a 7000 strike body with latchbolt monitor and two faceplates (791 and 792)
• Constructed with stainless steel for durability and tamper resistance
• Operates with dual voltage of 12 or 24 VDC/VAC

Product Highlights

Product Information

Standard Information

• Compatible Door Frame Type: Metal, Wood
• Compatible Door Lock Type: Cylindrical, Rim Exit

Technical Specifications

• Holding Strength: 1,500 pounds
• Faceplate Width: 1.25 inches
• Keeper Depth: 0.13 inches
• Input Voltage: 12 V AC, 12 V DC, 24 V AC, 24 V DC
• Available Finishes: Satin stainless steel (630)
• Depth: 1.6875 inches
• Height: 4.875 inches
• Distance between Mounting Holes: 4.125 inches
• Operating Mode: Fail Secure, Fail Safe
• Electrical Duty Cycle: 450 mA at 12 VDC/250 mA at 24 VDC
• Endurance: 1 million cycles
• Certification: ANSI/BHMA Grade 1 and ANSI/BHMA A156.31 Grade 2
