Hes 7000C-630-LBM Series 7000 Complete Pac Electric Strike Kit 12/24 VDC/VAC

Product Description

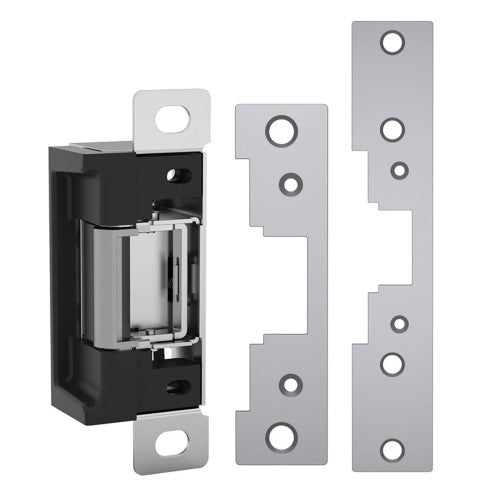

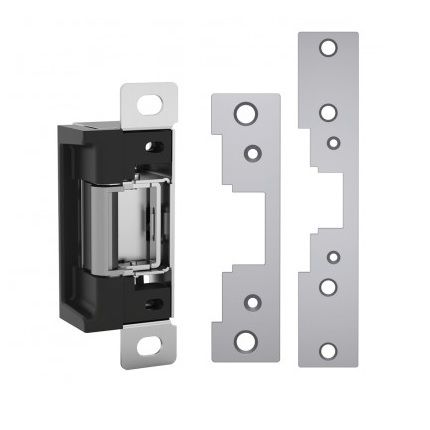

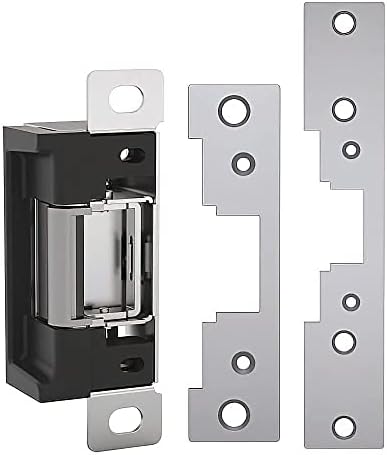

The HES 7000C-630-LBM Series 7000 Complete Pac electric strike kit is designed for pre-loaded doors, featuring in-frame horizontal adjustability. It is compatible with cylindrical latchbolts up to 5/8" throw and rim exit devices up to 3/4" throw. The kit includes a 7000 strike body, 791 faceplate for ANSI 4-7/8" strike plate, and 792 faceplate for 7-5/16" strike plate.

• Includes 7000 strike body with Latchbolt Monitor and faceplates (791 and 792)
• Features stainless steel construction and tamper resistance
• Dual voltage 12 or 24 VDC/VAC

Product Highlights

This electric strike kit offers a preload solution with stainless steel construction, tamper resistance, and dual voltage compatibility for enhanced security.

Product Information

Standard Information

• Brand: HES
• Manufacturer Part Number: 7000C-630-LBM

Technical Specifications

• Compatible Door Frame Type: Metal, Wood
• Compatible Door Lock Type: Cylindrical, Rim Exit
• Door Handling: Non Handed
• Electric Strike Assembly: Body with Faceplate
• Holding Strength: 1,500 pounds
• Faceplate Width: 1.25"
• Keeper Depth: 0.13"
• Product Material: Stainless Steel
• Input Voltage: 12 V AC, 12 V DC, 24 V AC, 24 V DC
• Available Finishes: Satin stainless steel (630)
• Material: Heavy duty stainless steel
• Depth: 1.6875"
• Height: 4.875"
• Distance between Mounting Holes: 4.125"
• Strength: Static - 1,500 lbs., Dynamic - 70 ft-lbs.
• Handing: Non-handed
• Frame Application: For hollow metal, concrete-filled metal, aluminum, and wood doors.
• Operating Mode: Fail Secure: In the event of a power outage the door stays locked. (Power is applied to unlock the door.) Fail Safe: In the event of a power outage the door gets unlocked. (Power is applied to lock the door.)
• Electrical (DC Continuous Duty): Dual voltage 12/24 VDC, 450 mA at 12 VDC/250 mA at 24 VDC
• Endurance: 1 million cycles
• Certification: ANSI/BHMA Grade 1 and ANSI/BHMA A156.31 Grade 2 (783S, 786S & 789S options) requirements for a high level of quality and security.
• Electrical: .45 Amps @ 12VDC continuous duty .25 Amps @ 24VDC continuous duty
• Static strength: 1,500 lbs. (791 and 792 options), 1,000 lbs. (783S, 786S and 789S options)
• Dynamic strength: 70 ft-lbs. (791 and 792 options), 50 ft-lbs. (783S, 786S and 789S options)
• Strike body depth: 1.6875"
• Faceplates 791: For use with Cylindrical locksets up to 5/8" throw. ANSI/BHMA Numbers: #E09322, #E09323
• Faceplates 792: For use with cylindrical locksets up to 5/8" throw. ANSI/BHMA Numbers: #E09322, #E09323
