HES 5300C-630 Electric Strike Fire Rated Complete Pac Dual Voltage (12/24)

Product Description

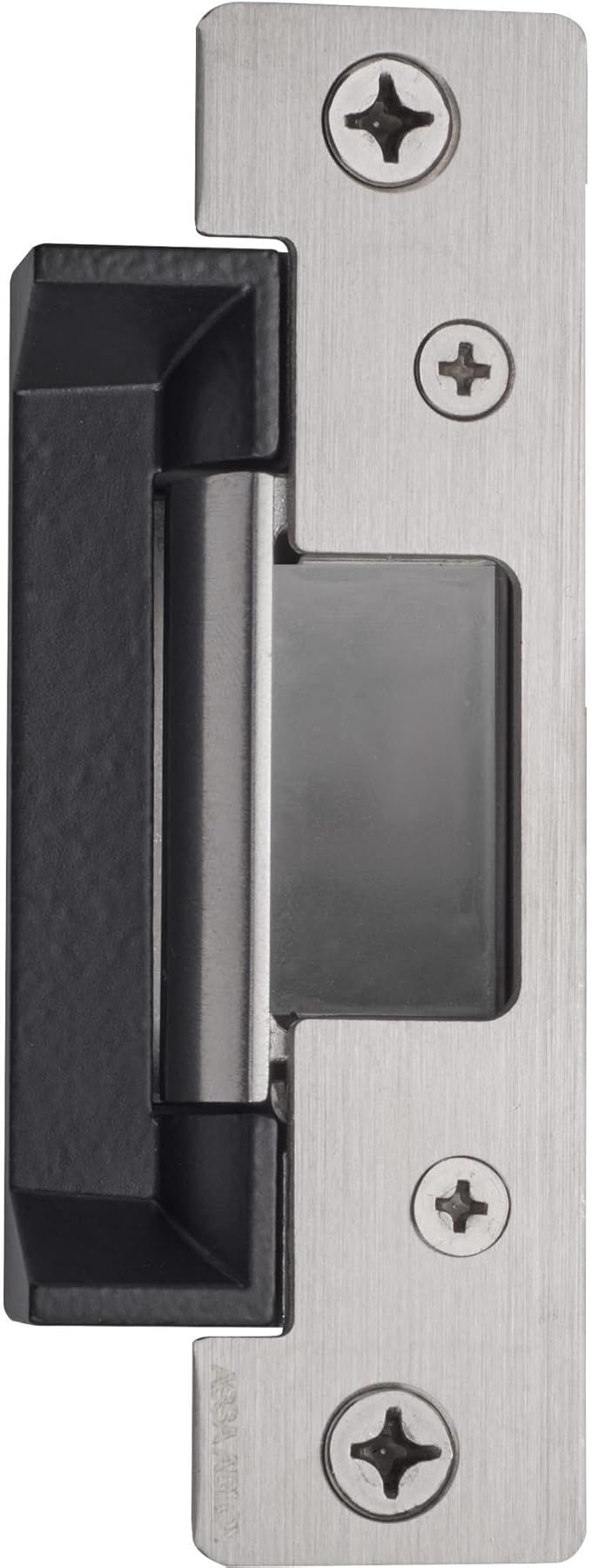

The HES 5300C-630 Electric Strike is a fire-rated, high-performance electric strike. It is designed for low profile openings with limited space behind the jamb. This electric strike features a keeper pin locking design to enhance security and durability.

• Tamper resistant with a static strength of 1,500 lbs
• Dynamic strength of 70 ft-lbs
• Endurance rated for 1 million cycles

Product Highlights

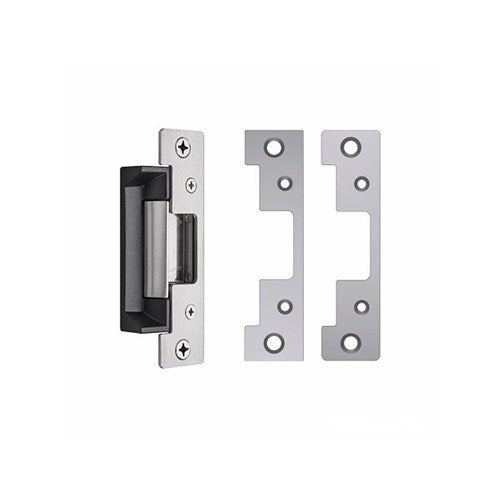

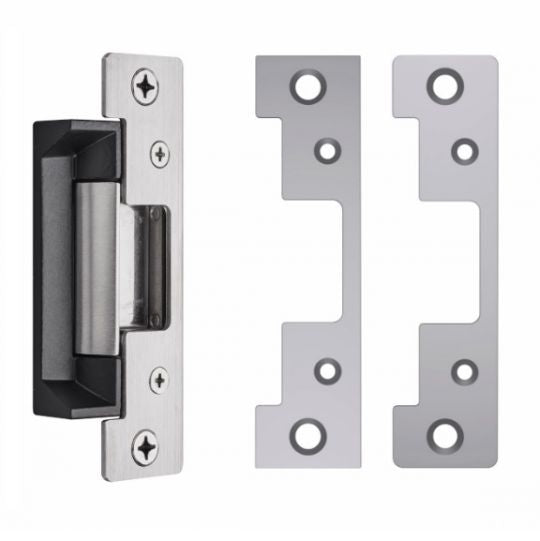

This product is ideal for use with cylindrical locks in metal frames or spring latches in aluminum frames. It includes the 501 and 501A faceplates for easy installation.

Product Information

Standard Information

• Brand: HES
• Model Number: 5300C-630

Technical Specifications

• Strike Body Depth: 1.0625 inches
• Strike Body Height: 4.875 inches
• Latchbolt Accommodation: Up to 5/8 inches
• Frame Material: Metal/Wood
• Voltage: 12 Volts (AC)
• Power Source: AC/DC
• Material: Aluminum
• Finish: Stainless Steel
• Usage: Weather Resistant
• Faceplates: Complete Pack with 501 and 501A Faceplates
• Warranty: SecuriCare five-year, no fault warranty
