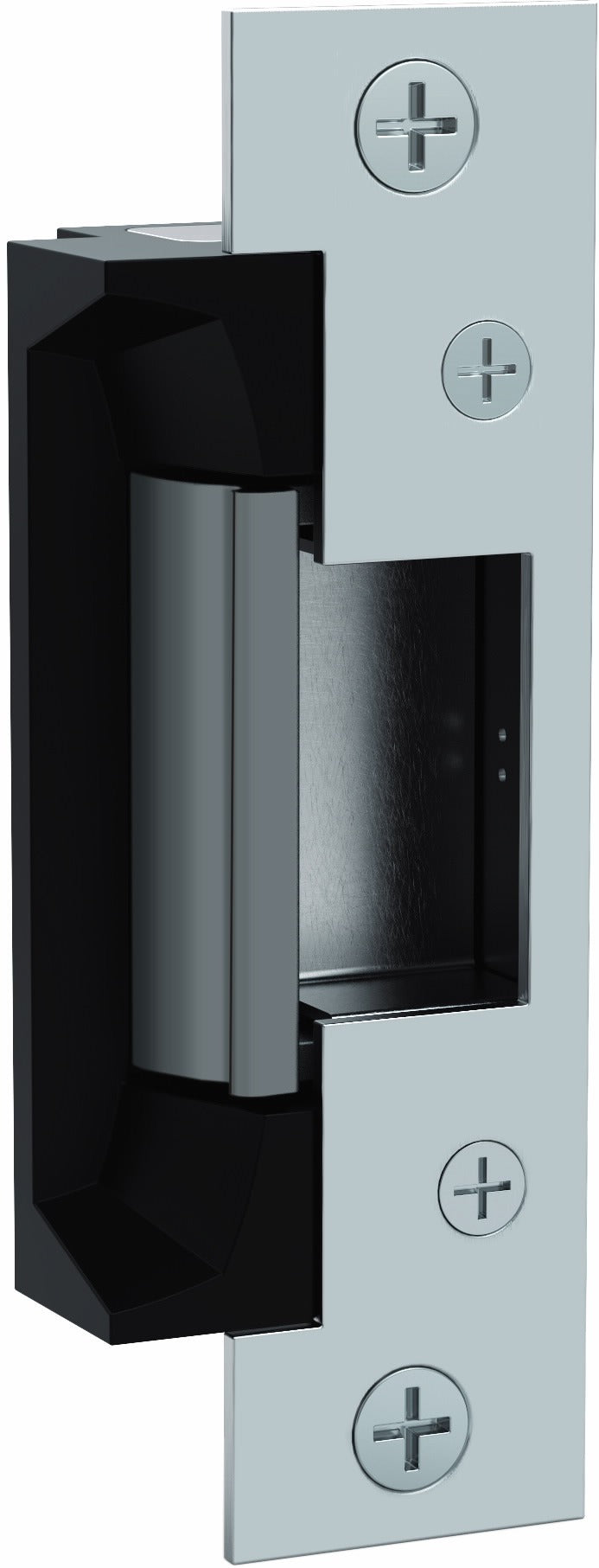

Hes 5200LBSM Electric Strike Body Latchbolt Monitor 12V 24V

Product Description

The HES 5200LBSM is an electro-mechanical electric strike body designed for access control applications, featuring an integrated latchbolt strike monitor. It operates on dual voltage input, accepting either 12VDC or 24VDC, making it adaptable to a wide range of access control panel configurations. The unit measures 10.5 inches in length, 3.5 inches in width, and 2.5 inches in height, and weighs 1.1 pounds. The latchbolt strike monitor provides real-time door position or latch status feedback to the control panel, supporting alarm integration and audit trail functions. Access control technicians and commercial locksmiths are the primary installers of this device.

The 5200LBSM is suited for commercial and light industrial door openings where electric strike locking is required alongside monitored latchbolt status. Typical installations include office entry doors, server room access points, and secured corridor doors controlled by card readers, keypads, or intercoms. The dual-voltage design simplifies compatibility with existing low-voltage access control wiring without requiring a dedicated transformer for each voltage class.

Key Features

• Dual voltage operation: accepts 12VDC or 24VDC input
• Integrated latchbolt strike monitor for door or latch status feedback
• Compact body: 10.5 inches long, 3.5 inches wide, 2.5 inches tall
• Lightweight construction at 1.1 pounds for straightforward door prep installation
• Designed for integration with standard access control panel systems

Compatibility

Designed as an OEM-style replacement or new-installation electric strike body for commercial access control systems requiring dual 12VDC or 24VDC operation with latchbolt monitoring capability.

Installation Notes

Installation is typically performed by a licensed access control technician or commercial locksmith. Disconnect power to the access control panel and all related low-voltage circuits before beginning work. Follow NEC guidelines for low-voltage wiring and observe the door manufacturer's prep specifications to ensure proper strike body seating and latch engagement. Do not exceed the rated voltage input during testing or normal operation.
