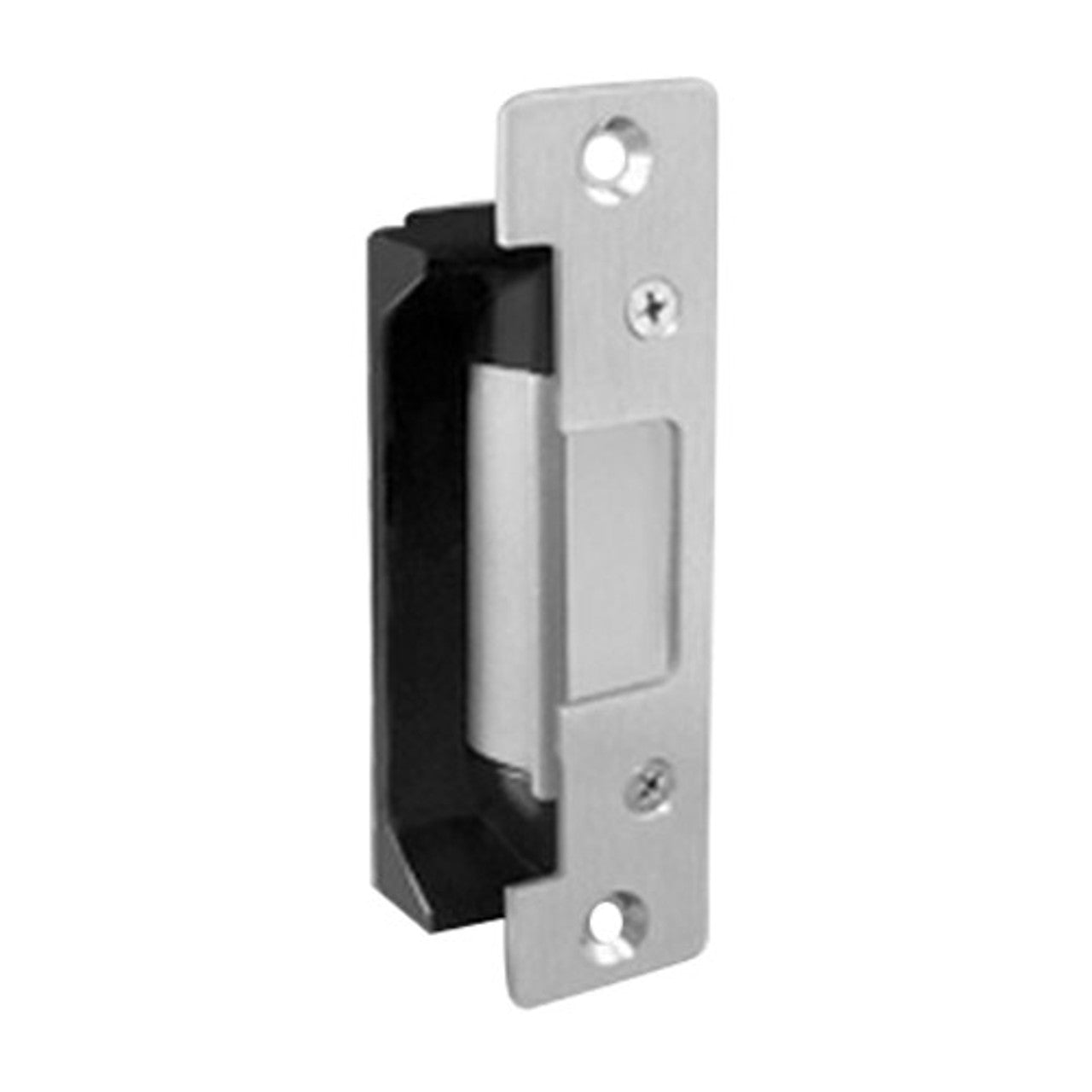

HES 5200C-630-LBSM Universal Door Electric Strike with Faceplate 12 or 24 VDC/VAC

Product Description

The HES 5200C-630-LBSM is a universal door electric strike designed for reliable access control. This product supports dual-voltage operation, allowing selection between twelve or twenty-four volts DC or AC. It is engineered to accommodate latchbolts of five-eighths to three-quarters inches, making it suited for various installations. The unit features a horizontal adjustable design and includes two-piece plug connectors for simple installation and maintenance. The complete package comes with the strike body, two faceplates, and mounting hardware.

• Dual-voltage capability: 12 or 24 VDC/VAC
• Durable construction with tamper resistance
• Static strength rated at 1,500 lbs

Product Highlights

This electric strike offers flexibility and security for door access systems.

Product Information

Standard Information

• Brand: HES
• MPN: 5200C-630-LBSM

Technical Specifications

• Static Strength: 1500 lbs
• Dynamic Strength: 70 ft-lbs
• Endurance: 500,000 cycles
• Voltage: 12 or 24 VDC/VAC
• Strike Body Depth: 1.1875 inches
• Strike Body Height: 4.87 inches
• Strike Body Width: 1.25 inches
• Mode: Fail-Safe/Fail-Secure Field Selectable
