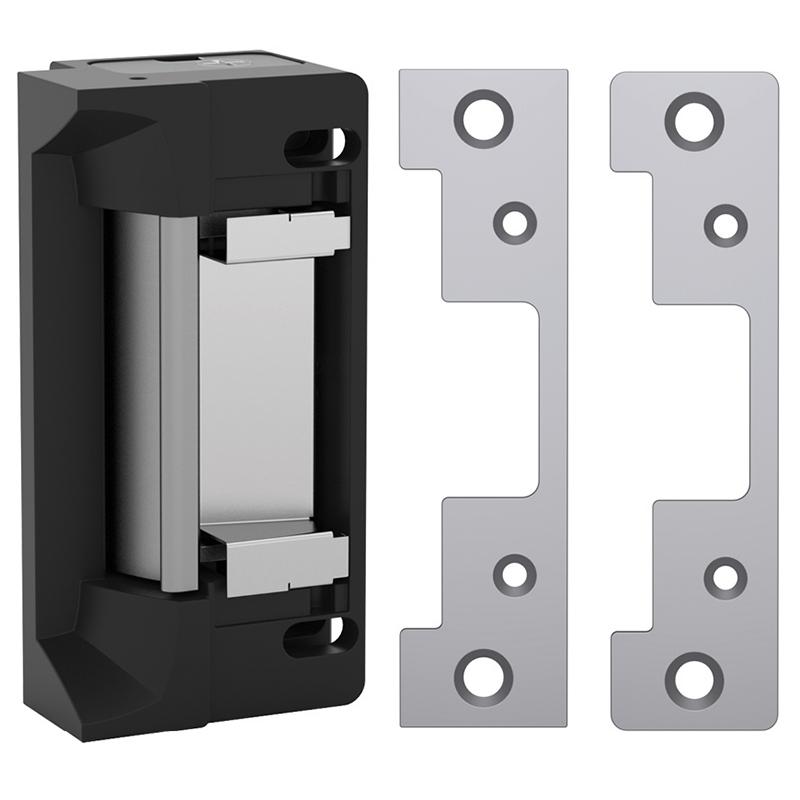

HES 5200C-630-LBM Universal Door Electric Strike 12/24 VDC/VAC

Product Description

The HES 5200C-630-LBM universal door electric strike is designed for easy installation with its horizontal adjustable feature. This device supports dual voltage of 12 or 24 VDC/VAC and fits latchbolts that are five eighths inches to three quarters inches in size.

• Static strength of 1500 lbs for robust security.
• Dynamic strength of 70 ft-lbs for reliable operation.
• Durable with an endurance rating of 500,000 cycles.

Product Highlights

The product is suitable for standard-duty applications and complies with ANSI/BHMA A156.31, Grade 1 standards.

Product Information

Standard Information

• Brand: HES
• Fire Rating: Non-Fire-Rated

Technical Specifications

• Static Strength: 1500 lbs
• Dynamic Strength: 70 ft-lbs
• Endurance: 500,000 cycles
• Voltage: Dual-voltage 12 or 24 VDC/VAC
• Strike Body Depth: 1.1875 inches
• Strike Body Height: 4.87 inches
• Strike Body Width: 1.25 inches
• Finishes: 630 Satin Stainless Steel
• Usage: Standard Duty
• Lock Type Compatibility: Cylindrical Lock
• Buy American Act Compliance: Meets Buy American Act - Made in USA
