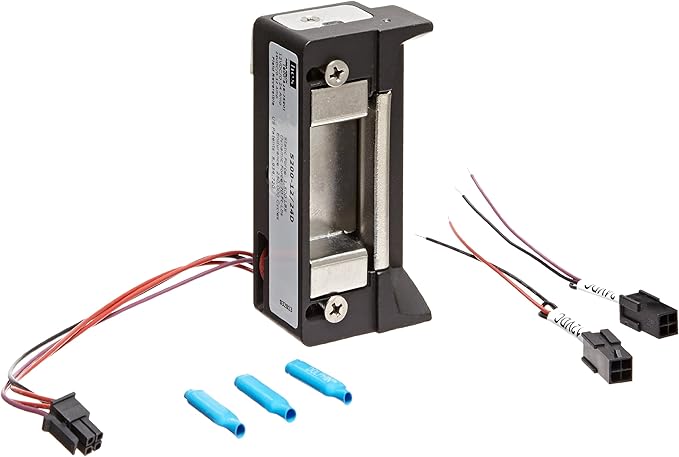

HES 5200-12/24DC Series Low Profile Heavy Duty Universal Electric Strike

Product Description

The HES 5200-12/24DC Series Universal Electric Strike is a compact electric strike for low-profile openings. It offers fail-secure or fail-safe operation. This strike supports 3/4 inch latch bolts and works with both 12VDC and 24VDC power for continuous duty.

• Low-profile design for tight spaces
• Field selectable fail secure/fail safe operation
• Durable satin stainless steel finish

Product Highlights

This electric strike is designed for commercial use in various applications where space is limited.

Product Information

Standard Information

• Brand: HES
• Model: HES 5200-12/24D

Technical Specifications

• Electrical: 0.24 Amps @ 12VDC/VAC; 0.12 Amps @ 24VDC/VAC
• Fail Secure: Unlocked when energized, locked when de-energized
• Fail Safe: Locked when energized, unlocked when de-energized
• Material: Stainless Steel
• Finish: Satin Stainless Steel
• Certification: ANSI, UL
• Dimensions: 10.5 x 3.5 x 2.2 inches
• Manufacturer: Hanchett Entry Systems, Inc.
