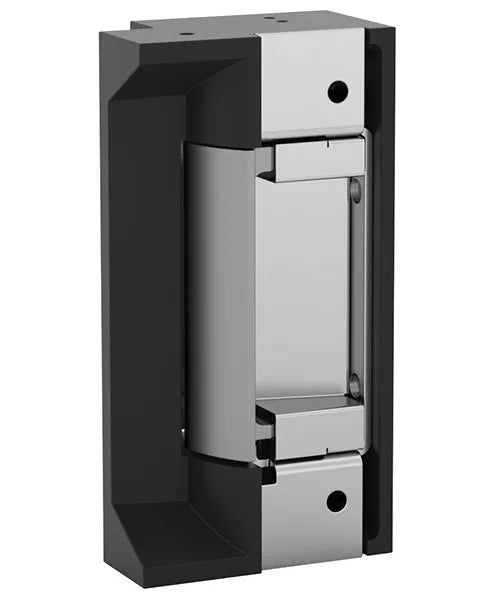

HES 5000C-630 Series 5000C Universal Electric Strike 12/24 VDC/VAC

Product Description

The HES 5000C-630 Series is an electric strike made for low-profile openings. It operates on dual voltage of 12 or 24 VDC/VAC and is known for its compact design. This unit includes a keeper pin locking design that enhances durability and security. It is easy to install and fits latchbolts up to five-eighths throw. This product is equipped with two faceplates, the 501 and 501A.

• Tamper-resistant design
• Static strength of 1,500 lbs
• Dynamic strength of 70 ft-lbs

Product Highlights

This electric strike is suitable for various applications, ensuring high security and durability.

Product Information

Standard Information

• Brand: HES Hardware - Assa Abloy
• Special Feature: Tamper resistant

Technical Specifications

• Lock Type: Electric
• Item dimensions: 10 x 3.5 x 2 inches
• Material: Metal, Stainless Steel
• Recommended Uses For Product: For Low Profile Openings
• Style: HES 5000C-630
• Finish Type: Satin

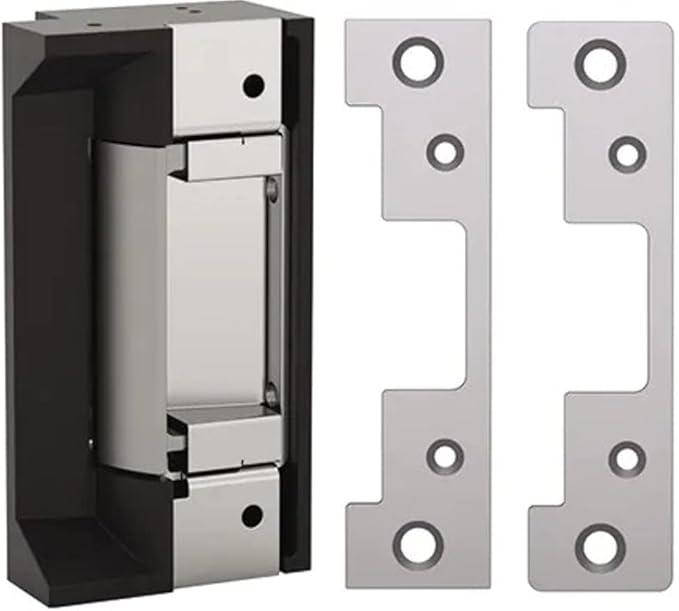

• Included Components: 5000 strike body, 501 faceplate, 501A faceplate
• Item Weight: 1.3 pounds
