HES 4500C-630-LBM Electric Strike Complete Pac 3/4 Throw Latchbolt

Product Description

The HES 4500C-630-LBM electric strike is suitable for installation in two-inch UL 10C fire-rated frames featuring half-inch drywall penetration. It has a depth of one and three-eighth inches and is constructed from heavy-duty stainless steel. The keeper pin locking design allows for ratings surpassing those of the frame, door, and locking hardware. This strike can accommodate cylindrical or mortise locksets with a throw latchbolt of up to three-quarters of an inch.

• Includes two interchangeable faceplates for various latchbolts without deadbolts.
• Field-selectable between fail safe and fail secure; it is non-handed.
• Maintains half-inch drywall penetration within a two-inch UL 10C fire-rated frame.

Product Highlights

The HES 4500C-630-LBM is designed to meet high durability and security needs.

Product Information

Standard Information

• Brand: HES Hardware - Assa Abloy
• Part Number: HES 4500C-12/24D-630

Technical Specifications

• Item Model Number: HES 4500C-12/24D-630
• Style: HES 4500C-630
• Finish: satin
• Item Package Quantity: 1
• Batteries Included: No
• Batteries Required: No
• Product Type: Electric Strike with Latchbolt Monitor
• Installation Compatibility: 2-inch UL 10C fire-rated frames with half-inch drywall penetration
• Body Depth: 1-3/8 inches
• Material: Heavy-duty stainless steel
• Strength Ratings: Static: 1,500 lbs, Dynamic: 100 ft-lbs
• Endurance Rating: 1,000,000 cycles
• Voltage Options: Dual: 12 or 24 VAC/VDC

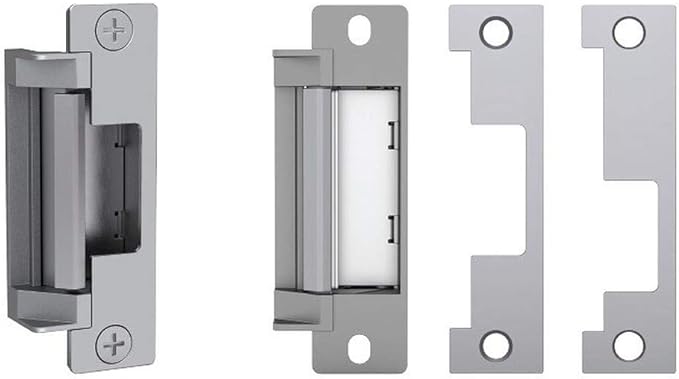

• Faceplates: Two interchangeable for various latchbolts
• Design: Non-handed, internally mounted solenoid
• Latchbolt Accommodation: Up to 3/4 inches
• Connector Type: Plug-in
• Adjustments: Full keeper shims for horizontal alignment
